What are the exact dimensions of this SKF support roller?

The support roller has an outer diameter of 62 mm, an inside diameter of 30 mm, and a total width of 29 mm.

Is the SKF NATR 30 PPA sealed?

Yes, it features integrated flange seals to retain grease inside the bearing and keep out contaminants.

Can this support roller be relubricated?

Yes, the inner ring features a lubrication hole that allows for easy relubrication during maintenance.

What are the main applications for this yoke-type track roller?

It is designed for cam drives, conveyor systems, and linear guide tracks in industrial machinery.

Does this support roller come with an inner ring?

Yes, the NATR design includes an inner ring and is ready to mount.

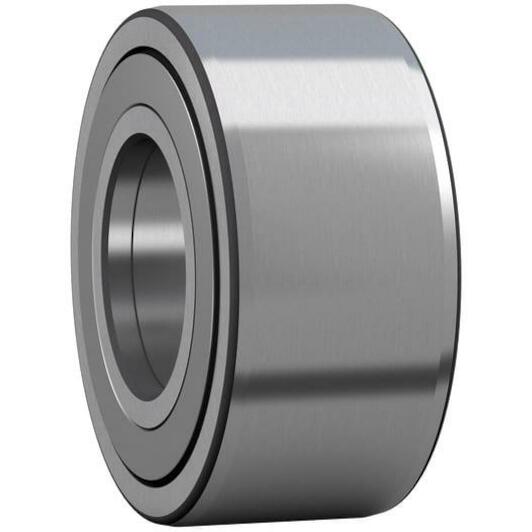

SKF NATR 30 PPA support roller with inner ring and flange seal (Yoke type track roller) 62 x 30 x 29 mm - NATR 30 PP

Supplier number: SKF NATR 30 PP | EAN 7316570196009

Recommended Retail Price €218.02

107.60 tax incl.

€88.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable tracking with Skf

Practical benefits

High radial load capacity: You support heavy radial loads and tilting forces effortlessly thanks to the thick-walled outer ring and needle roller design.
Effective integrated sealing: Built-in contact and labyrinth seals reliably retain lubricating grease while protecting the internal components from coarse contaminants.
Quick and easy relubrication: You maximize component service life by replenishing grease directly through the convenient lubrication hole in the inner ring.

In a nutshell

The right choise for

With the Skf natr 30 ppa yoke-type track roller, you ensure smooth and dependable guidance across linear guide tracks, conveyor systems, and cam mechanisms. Its thick-walled outer ring and needle roller assembly effortlessly support heavy radial loads and tilting forces. Integrated ppa flange seals reliably retain lubricating grease while shielding internal components from dirt and moisture. Ready to mount with its included inner ring, this support roller allows for quick relubrication through the dedicated oil hole to keep your equipment running smoothly.

Product information FAQ

€107.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 29 mm
Outer diameter: 62 mm

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 29 mm
Outer diameter: 62 mm
Axial guidance of outer ring: Yes
Rolling elements: Needle rollers
Functional outside diameter: 62
Material, bearing: Bearing steel
Cage: With
Sealing type: Contact
Width, outer ring: 28
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 32.5
Radial internal clearance: Between C2 and CN
Tolerance class: Other
Bearing part: Complete track roller
Number of flanges, outer ring: 2
Sealing: Seal on both sides
Width, total: 29
Outer ring profile: Crowned
Limiting speed: 1800
Bore diameter: 30
Number of rows: 1
Basic dynamic load rating: 22
Coating: Without
Application: Support roller

Brand SKF
01210124
EAN 7316570196009
Supplier number SKF NATR 30 PP

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF support roller?: The support roller has an outer diameter of 62 mm, an inside diameter of 30 mm, and a total width of 29 mm.
Is the SKF NATR 30 PPA sealed?: Yes, it features integrated flange seals to retain grease inside the bearing and keep out contaminants.
Can this support roller be relubricated?: Yes, the inner ring features a lubrication hole that allows for easy relubrication during maintenance.
What are the main applications for this yoke-type track roller?: It is designed for cam drives, conveyor systems, and linear guide tracks in industrial machinery.
Does this support roller come with an inner ring?: Yes, the NATR design includes an inner ring and is ready to mount.
