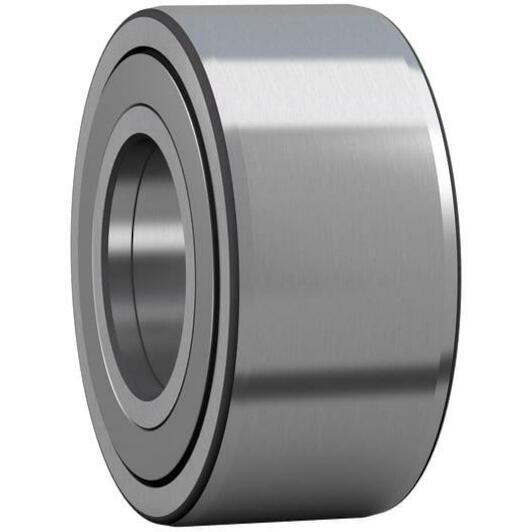

SKF NATR 5 PPXA support roller with inner ring and flange seal (Yoke type track roller) 16 x 5 x 12 mm - NATR 5 PPX

SKF
Supplier number: SKF NATR 5 PPX | EAN 7316570147469
Recommended Retail Price €82.09
40.60 tax incl.
€33.55 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 1 products in stock.

  • Ordered before 20:00 - delivered as of 12/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€40.60
In stock - tax incl.

Product information

Key features according to our expert

  • Inner diameter: 5 mm
  • Outer diameter: 16 mm
  • Width: 12 mm

Product description:

  • Support roller with axial guide, with seals

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
5 mm
Outer diameter
16 mm
Width
12 mm
Functional outside diameter
16 mm
Material, bearing
Bearing steel
Cage
With
Sealing type
Contact
Width, outer ring
11 mm
Lubricant
Grease
Relubrication feature
With
Basic static load rating
3 kN
Radial internal clearance
Between C2 and CN
Tolerance class
Other
Bearing part
Complete track roller
Axial guidance of outer ring
Yes
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
12 mm
Outer ring profile
Cylindrical
Limiting speed
6,000 r/min
Bore diameter
5 mm
Number of rows
1
Basic dynamic load rating
2.86 kN
Coating
Without
Rolling elements
Needle rollers
  • Brand SKF
  • EAN 7316570147469
  • Supplier number SKF NATR 5 PPX
