What are the dimensions of this support roller?

The support roller has an outside diameter of 24 mm, a bore diameter of 8 mm, and an overall width of 15 mm.

What does the PPA designation mean?

The PPA suffix indicates a crowned outer ring running surface and contact seals made of polyamide on both sides.

Can this support roller be relubricated?

Yes, a lubrication hole in the inner ring allows you to relubricate the bearing to extend its service life.

What applications is the SKF NATR 8 PPA suitable for?

It is suitable for cam drives, conveyor systems, and linear guide tracks handling high radial loads.

How is this yoke-type track roller mounted?

You mount this yoke-type roller directly onto a shaft or pin using its 8 mm inner ring.

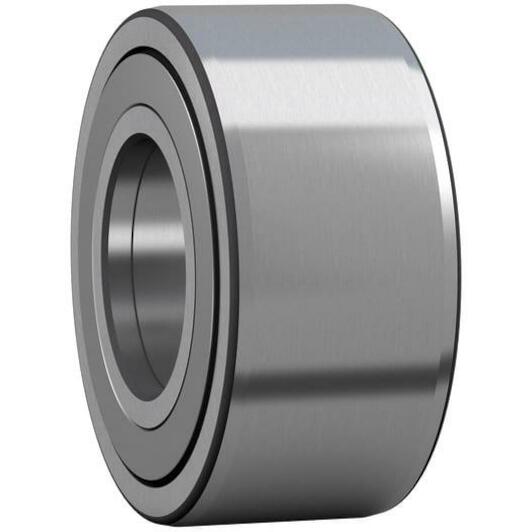

SKF NATR 8 PPA support roller with inner ring and flange seal (Yoke-type idler) 24 x 8 x 15 mm - NATR 8 PP

Supplier number: SKF NATR 8 PP | EAN 7316577724670

Recommended Retail Price €78.76

38.80 tax incl.

€32.07 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable guidance with Skf NATR 8 PPA

Practical benefits

High radial load capacity: The thick-walled outer ring accommodates heavy radial loads while minimizing distortion and bending stresses during operation.
Reliable protection against contaminants: Integrated contact seals on both sides prevent dirt and moisture ingress, keeping lubricant securely inside the bearing.
Simple and fast relubrication: You can relubricate the support roller easily through dedicated lubrication ducts to extend service life significantly.

In a nutshell

The right choise for

With the Skf natr 8 ppa yoke-type support roller, you ensure dependable guidance across demanding mechanical applications. Its thick-walled outer ring easily accommodates heavy radial loads, reducing distortion and bending stresses during continuous operation. Integrated polyamide contact seals on both sides reliably keep out dust and moisture while retaining lubricant inside the bearing. Perfect for cam drives, conveyor systems, and linear guide tracks, it mounts directly onto shafts via its 8 mm inner ring. Thanks to the practical lubrication duct, you can relubricate quickly to significantly extend service life. Measuring 24 x 8 x 15 mm, it delivers smooth, durable performance in any setup.

Product information FAQ

€38.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 8 mm
Width: 15 mm
Outer diameter: 24 mm

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 8 mm
Width: 15 mm
Outer diameter: 24 mm
Axial guidance of outer ring: Yes
Rolling elements: Needle rollers
Functional outside diameter: 24
Material, bearing: Bearing steel
Cage: With
Sealing type: Contact
Width, outer ring: 14
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 5.1
Radial internal clearance: Between C2 and CN
Tolerance class: Other
Bearing part: Complete track roller
Number of flanges, outer ring: 2
Sealing: Seal on both sides
Width, total: 15
Outer ring profile: Crowned
Limiting speed: 5000
Bore diameter: 8
Number of rows: 1
Basic dynamic load rating: 4.57
Coating: Without
Application: Support roller

Brand SKF
01210095
EAN 7316577724670
Supplier number SKF NATR 8 PP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this support roller?: The support roller has an outside diameter of 24 mm, a bore diameter of 8 mm, and an overall width of 15 mm.
What does the PPA designation mean?: The PPA suffix indicates a crowned outer ring running surface and contact seals made of polyamide on both sides.
Can this support roller be relubricated?: Yes, a lubrication hole in the inner ring allows you to relubricate the bearing to extend its service life.
What applications is the SKF NATR 8 PPA suitable for?: It is suitable for cam drives, conveyor systems, and linear guide tracks handling high radial loads.
How is this yoke-type track roller mounted?: You mount this yoke-type roller directly onto a shaft or pin using its 8 mm inner ring.
