SKF

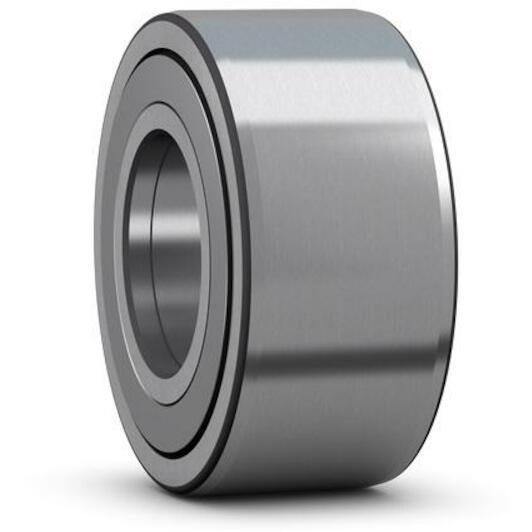

SKF NATV 10 PP support roller (yoke-type) with track collars, sealing on both sides and relubrication option 10 mm

Recommended Retail Price €125.27
61.80 tax incl.
€51.07 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

  • High radial load carrying capacity
  • Accommodate axial loads due to skew or tilting
  • Long service life
  • Ready to mount
  • Sealed for increased reliability, with relubrication feature
Key features according to our expert
  • Inner diameter: 10 mm
  • Outer diameter: 30 mm
  • Width: 15 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577727558
  • Supplier number: SKF NATV 10 PP
Inner diameter
10 mm
Outer diameter
30 mm
Width
15 mm
Rolling elements
Needle rollers
Functional outside diameter
30
Material, bearing
Bearing steel
Cage
Without
Sealing type
Contact
Width, outer ring
14
Lubricant
Grease
Relubrication feature
With
Basic static load rating
13.4
Tolerance class
Other
Bearing part
Complete track roller
Axial guidance of outer ring
Yes
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
15
Outer ring profile
Crowned
Limiting speed
3200
Bore diameter
10
Number of rows
1
Basic dynamic load rating
10.1
Coating
Without
Application
Support roller
