SKF

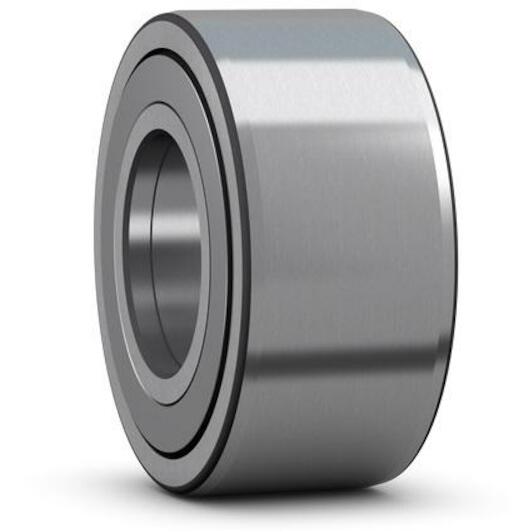

SKF NATV 5 PP support roller (yoke-type) with track collars, sealing on both sides and relubrication option 5 mm

Recommended Retail Price €75.24
36.95 tax incl.
€30.54 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

  • High radial load carrying capacity
  • Accommodate axial loads due to skew or tilting
  • Long service life
  • Ready to mount
  • Sealed for increased reliability, with relubrication feature
Key features according to our expert
  • Inner diameter: 5 mm
  • Outer diameter: 16 mm
  • Width: 12 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570396058
  • Supplier number: SKF NATV 5 PP
Inner diameter
5 mm
Outer diameter
16 mm
Width
12 mm
Rolling elements
Needle rollers
Functional outside diameter
16
Material, bearing
Bearing steel
Cage
Without
Sealing type
Contact
Width, outer ring
11
Lubricant
Grease
Relubrication feature
With
Basic static load rating
6
Tolerance class
Other
Bearing part
Complete track roller
Axial guidance of outer ring
Yes
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
12
Outer ring profile
Crowned
Limiting speed
4300
Bore diameter
5
Number of rows
1
Basic dynamic load rating
4.29
Coating
Without
Application
Support roller
