What are the dimensions of this SKF support roller?

The roller has an outer diameter of 24 mm, a bore diameter of 8 mm, and a width of 15 mm.

What are the main applications for the SKF NATV 8 PPA?

It is designed for cam drives, track systems, and conveyors operating under heavy radial loads.

Does this track roller have integrated seals?

Yes, it features integrated contact seals on both sides to keep contaminants out.

Can the SKF NATV 8 PPA be relubricated?

Yes, the inner ring includes a lubrication hole to facilitate easy relubrication.

Is this support roller ready to mount?

Yes, it is pre-greased, fitted with an inner ring, and supplied ready for immediate mounting.

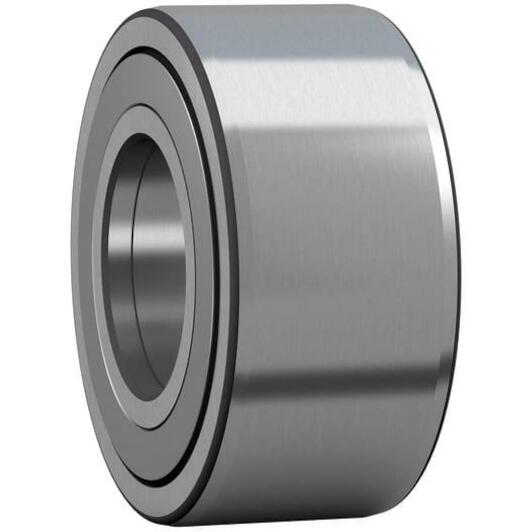

SKF NATV 8 PPA support roller with inner ring and flange seal (Yoke-type idler) 24 x 8 x 15 mm - NATV 8 PP

Supplier number: SKF NATV 8 PP | EAN 7316570892956

Recommended Retail Price €91.37

44.95 tax incl.

€37.15 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable track roller for heavy radial loads

Practical benefits

High radial load capacity: With the full complement needle set from Skf, you handle heavy radial loads effortlessly in demanding operations.
Effective sealing protection: Integrated seals keep dirt and contaminants out while retaining lubricant to maximize overall component life.
Easy and convenient relubrication: A built-in lubrication hole in the inner ring allows you to perform maintenance quickly without disassembly.

In a nutshell

The right choise for

With the Skf natv 8 ppa track roller, you get dependable guidance that effortlessly handles heavy radial loads and peak forces. This compact yoke-type support roller with an inner ring and flange rings arrives ready to mount, making it ideal for track systems, cam drives, and conveyors. Its full complement needle roller set delivers high radial load capacity, while integrated seals keep dirt and moisture out to protect the lubricant. When routine maintenance is due, the built-in lubrication hole in the inner ring allows you to relubricate quickly without disassembling the unit, keeping your machinery running smoothly and reliably.

Product information FAQ

€44.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 8 mm
Width: 15 mm
Outer diameter: 24 mm

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 8 mm
Width: 15 mm
Outer diameter: 24 mm
Axial guidance of outer ring: Yes
Rolling elements: Needle rollers
Functional outside diameter: 24
Material, bearing: Bearing steel
Cage: Without
Sealing type: Contact
Width, outer ring: 14
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 11.6
Radial internal clearance: Between C2 and CN
Tolerance class: Other
Bearing part: Complete track roller
Number of flanges, outer ring: 2
Sealing: Seal on both sides
Width, total: 15
Outer ring profile: Crowned
Limiting speed: 3600
Bore diameter: 8
Number of rows: 1
Basic dynamic load rating: 7.48
Coating: Without
Application: Support roller

Brand SKF
01210237
EAN 7316570892956
Supplier number SKF NATV 8 PP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF support roller?: The roller has an outer diameter of 24 mm, a bore diameter of 8 mm, and a width of 15 mm.
What are the main applications for the SKF NATV 8 PPA?: It is designed for cam drives, track systems, and conveyors operating under heavy radial loads.
Does this track roller have integrated seals?: Yes, it features integrated contact seals on both sides to keep contaminants out.
Can the SKF NATV 8 PPA be relubricated?: Yes, the inner ring includes a lubrication hole to facilitate easy relubrication.
Is this support roller ready to mount?: Yes, it is pre-greased, fitted with an inner ring, and supplied ready for immediate mounting.
