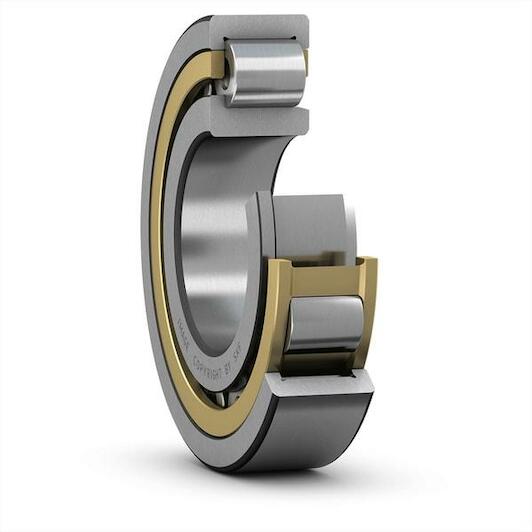

SKF NJ 1016 ECML/C3 Single-row cylindrical roller bearing with NJ design 80 mm

Recommended Retail Price €1,389.73
687.95 tax incl.
€568.55 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 22 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 125 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571145372
  • Supplier number: SKF NJ 1016 ECML/C3
Inner diameter
80 mm
Width
22 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
125 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Basic static load rating
127
Cage
Machined metal
Reference speed
6000
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Number of flanges, inner ring
1
Bearing part
Complete bearing
Bore diameter
80
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
9500
Basic dynamic load rating
112
Coating
Without
Outside diameter
125
Axial displacement capability
In one direction
