What are the dimensions of this bearing?

The bearing has a 65 mm bore diameter, a 120 mm outside diameter, and a width of 31 mm.

What does the NJ design mean on this SKF bearing?

The NJ design features two integral flanges on the outer ring and one on the inner ring, locating the shaft axially in one direction.

What is the radial internal clearance of this bearing?

This bearing has a standard normal radial clearance (CN).

What material is the cage made from?

The cage of this bearing is made from a non-metallic polymer material (polyamide).

Does this cylindrical roller bearing have seals?

No, this bearing is an open type without integrated seals.

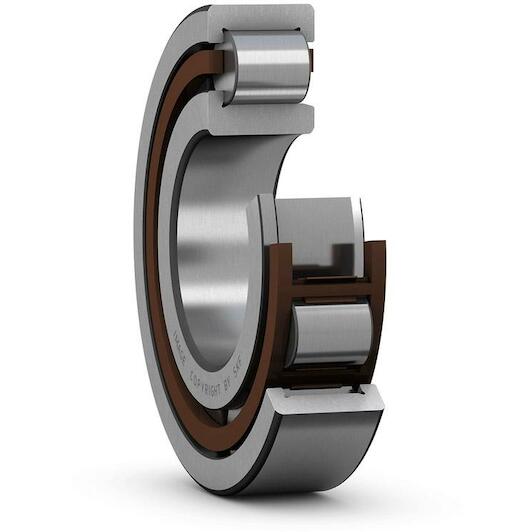

SKF NJ 2213 ECP Single-row cylindrical roller bearing 65 x 120 x 31 mm

Supplier number: SKF NJ 2213 ECP | EAN 7316577665560

Recommended Retail Price €393.65

194.80 tax incl.

€160.99 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

High radial capacity by Skf

Practical benefits

Handles heavy radial loads: You achieve exceptional radial load support at high speeds thanks to the optimized cylindrical roller construction.
Reliable single direction location: Built with integrated flanges, the NJ design guides and secures your shaft axially in one direction.
Quick and separable mounting: You install and maintain bearings easily as the separable inner and outer components mount independently.

In a nutshell

The right choise for

Handle heavy radial loads at high rotational speeds with the Skf nj 2213 ecp single row cylindrical roller bearing. Measuring 65 x 120 x 31 mm, this open bearing features a durable polymer cage, a cylindrical bore, and standard normal radial internal clearance (CN). The nj design, featuring two flanges on the outer ring and one on the inner ring, securely guides and locates your shaft axially in one direction. Its separable design makes mounting, dismounting, and maintenance in gearboxes, pumps, and electric motors fast and efficient.

Product information FAQ

€194.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 31 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 120 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 31 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 120 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Basic static load rating: 180
Cage: Non-metallic
Reference speed: 6300
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 6700
Bore diameter: 65
Basic dynamic load rating: 170
Coating: Without
Outer diameter: 120
Axial displacement capability: In one direction

Brand SKF
01070058
EAN 7316577665560
Supplier number SKF NJ 2213 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 65 mm bore diameter, a 120 mm outside diameter, and a width of 31 mm.
What does the NJ design mean on this SKF bearing?: The NJ design features two integral flanges on the outer ring and one on the inner ring, locating the shaft axially in one direction.
What is the radial internal clearance of this bearing?: This bearing has a standard normal radial clearance (CN).
What material is the cage made from?: The cage of this bearing is made from a non-metallic polymer material (polyamide).
Does this cylindrical roller bearing have seals?: No, this bearing is an open type without integrated seals.
