SKF

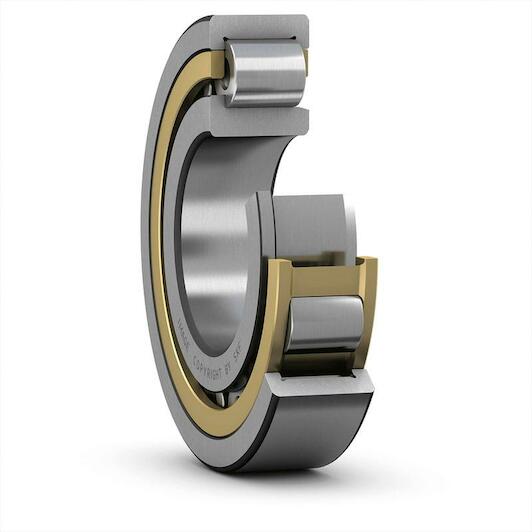

SKF NJ 2322 ECML/C4 single-row cylindrical roller bearing 110 x 240 x 80 mm

Recommended Retail Price €4,252.32
2,105.20 tax incl.
€1,739.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design
Key features according to our expert
  • Inner diameter: 110 mm
  • Width: 80 mm
  • Number of rows: 1
  • Radial clearance: C4
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 240 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316574522217
  • Supplier number: SKF NJ 2322 ECML/C4
Inner diameter
110 mm
Width
80 mm
Number of rows
1
Radial clearance
C4
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
240 mm
Basic static load rating
900
Tolerance class
Normal
Radial internal clearance
C4
Loose flange
None
Number of flanges, inner ring
1
Relubrication feature
Without
Skf performance class
SKF Explorer
Lubricant
None
Cage
Machined metal
Locating feature, bearing outer ring
None
Bearing part
Complete bearing
Basic dynamic load rating
780
Sealing
Without
Number of flanges, outer ring
2
Bore diameter
110
Coating
Without
Outside diameter
240
Axial displacement capability
In one direction
