SKF

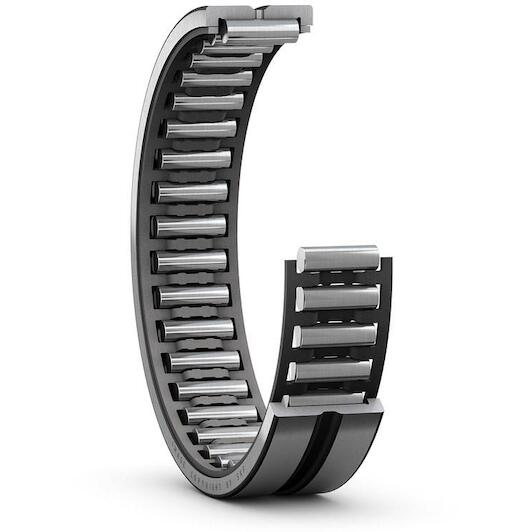

SKF NK 15/20 needle roller bearing without inner ring 15x23x20 mm

Recommended Retail Price €43.08
21.20 tax incl.
€17.52 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
Key features according to our expert
  • Inner diameter: 15 mm
  • Width: 20 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Sheet steel
  • Outer diameter: 23 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577117878
  • Supplier number: SKF NK 15/20
Inner diameter
15 mm
Width
20 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Sheet steel
Outer diameter
23 mm
Basic static load rating
18.3
Bearing part
Bearing without inner ring
Tolerance class
Normal
Aligning feature
Without
Reference speed
24000
Bore diameter of needle roller complement
15
Relubrication feature
With
Number of flanges, outer ring
2
Lubricant
None
Cage
Sheet steel
Sealing
Without
Basic dynamic load rating
13.8
Outer ring type
Machined (solid)
Limiting speed
26000
Coating
Without
Outside diameter
23
Material, bearing
Bearing steel
