What are the dimensions of the SKF NK 22/20 needle roller bearing?

The bearing has an inside diameter of 22 mm, an outside diameter of 30 mm, and a width of 20 mm.

What is the advantage of a needle bearing without an inner ring?

It uses the hardened and ground shaft directly as a raceway, saving space in compact designs.

Does this needle roller bearing have built-in seals?

No, this bearing has an open design without seals.

What material is the bearing cage made from?

The cage is made from sheet steel.

Can this bearing be relubricated?

Yes, the outer ring features an annular groove with lubrication holes for easy relubrication.

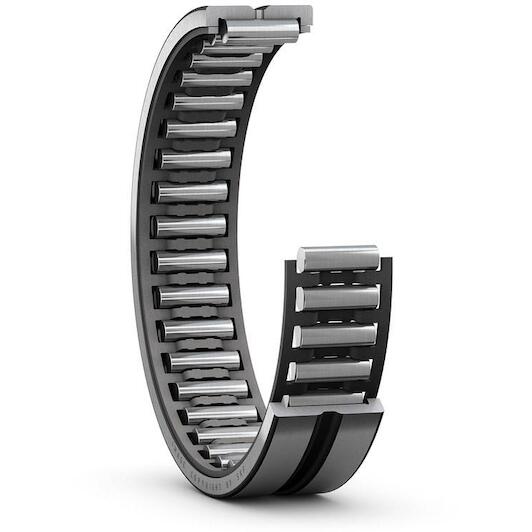

SKF NK 22/20 needle roller bearing without inner ring 22x30x20 mm

Supplier number: SKF NK 22/20 | EAN 7316577118066

Recommended Retail Price €55.49

27.40 tax incl.

€22.64 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

High radial load capacity with Skf

Practical benefits

Extremely compact design: By using the shaft directly as a raceway without an inner ring, you save valuable radial space.
High radial stiffness: The machined outer ring and steel cage give you dependable rigidity and high dynamic load ratings.
Simple and fast relubrication: You maintain smooth operation easily thanks to the lubrication groove and holes in the outer ring.

In a nutshell

The right choise for

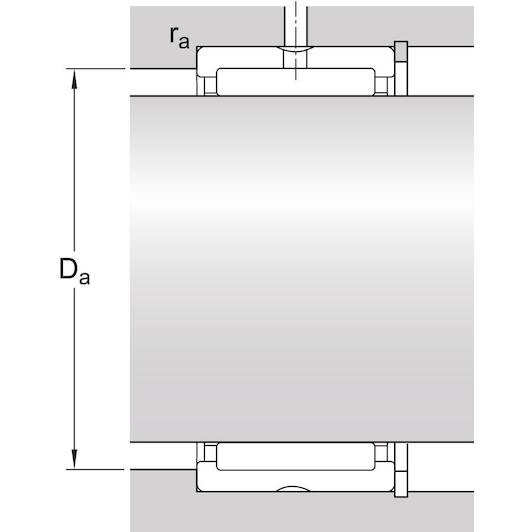

With the Skf nk 22/20 needle roller bearing, you achieve an extremely compact bearing arrangement capable of handling high radial loads in tight spaces. Because this single-row bearing is designed without an inner ring, a hardened and ground shaft serves directly as the raceway. This saves valuable radial installation space and weight in gearboxes, reduction units, and hydraulic pumps. The solid outer ring with integral flanges and a sheet steel cage ensures high rigidity and smooth operation at high rotational speeds. Thanks to the lubrication groove and lubrication holes in the outer ring, regular relubrication and maintenance are straightforward.

Product information FAQ

€27.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 22 mm
Width: 20 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 30 mm

Product description

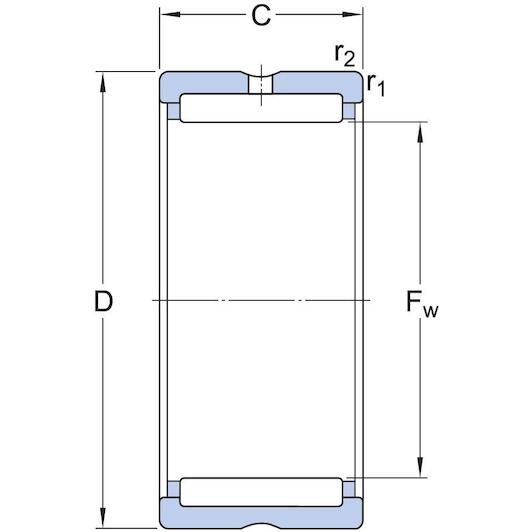

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 22 mm
Width: 20 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 30 mm
Basic static load rating: 29
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Reference speed: 18000
Bore diameter of needle roller complement: 22
Relubrication feature: With
Number of flanges, outer ring: 2
Lubricant: None
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 17.9
Outer ring type: Machined (solid)
Limiting speed: 20000
Coating: Without
Outer diameter: 30
Material, bearing: Bearing steel

Brand SKF
01290075
EAN 7316577118066
Supplier number SKF NK 22/20

Frequently asked questions about this product

Answered by specialists

What are the dimensions of the SKF NK 22/20 needle roller bearing?: The bearing has an inside diameter of 22 mm, an outside diameter of 30 mm, and a width of 20 mm.
What is the advantage of a needle bearing without an inner ring?: It uses the hardened and ground shaft directly as a raceway, saving space in compact designs.
Does this needle roller bearing have built-in seals?: No, this bearing has an open design without seals.
What material is the bearing cage made from?: The cage is made from sheet steel.
Can this bearing be relubricated?: Yes, the outer ring features an annular groove with lubrication holes for easy relubrication.
