SKF

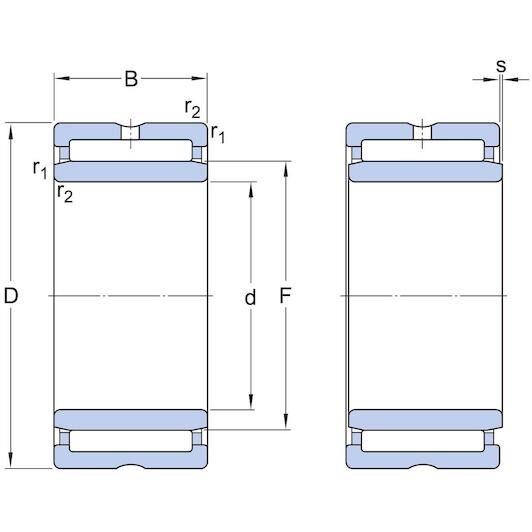

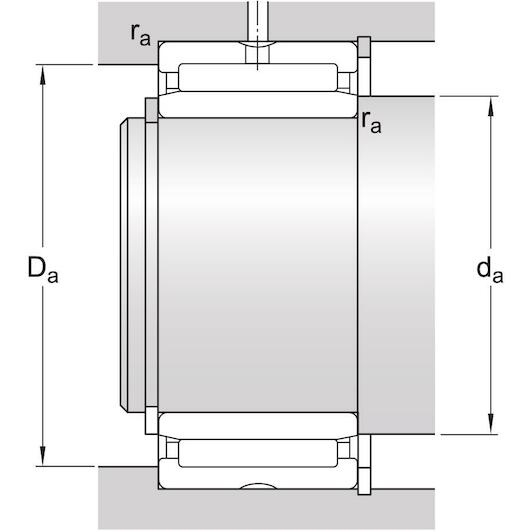

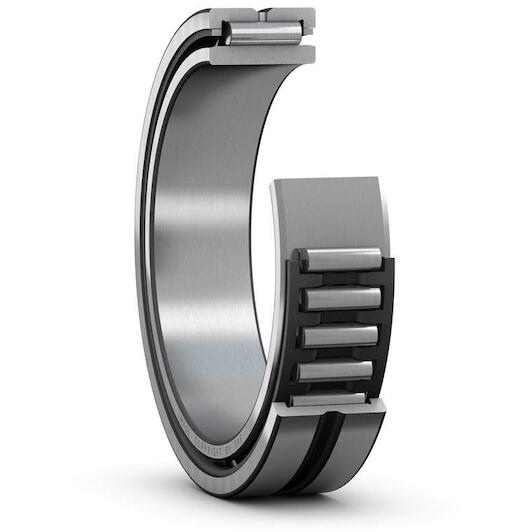

SKF NKI 15/20 needle roller bearing with inner ring 15x27x20 mm

Recommended Retail Price €63.05
30.95 tax incl.
€25.58 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 15 mm
  • Width: 20 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 27 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577014498
  • Supplier number: SKF NKI 15/20
Inner diameter
15 mm
Width
20 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
27 mm
Aligning feature
Without
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Reference speed
20000
Basic static load rating
25.5
Relubrication feature
With
Number of flanges, outer ring
2
Lubricant
None
Cage
Sheet metal
Sealing
Without
Outer ring type
Machined (solid)
Limiting speed
24000
Bore diameter
15
Basic dynamic load rating
16.5
Coating
Without
Outside diameter
27
Material, bearing
Bearing steel
