What are the exact dimensions of this bearing?

The bearing has a bore diameter of 22 mm, an outside diameter of 34 mm, and a width of 16 mm.

Does this needle roller bearing include an inner ring?

Yes, the NKI 22/16 model is a complete bearing assembly that includes a solid inner ring.

Does this needle roller bearing have seals?

No, this is an open bearing without integrated seals, designed for oil or grease lubrication.

Is the design of this bearing separable?

Yes, the inner ring and outer ring with needle roller assembly can be mounted independently.

What loads can this type of bearing support?

This single-row bearing provides very high radial load carrying capacity and stiffness with a low cross-sectional height.

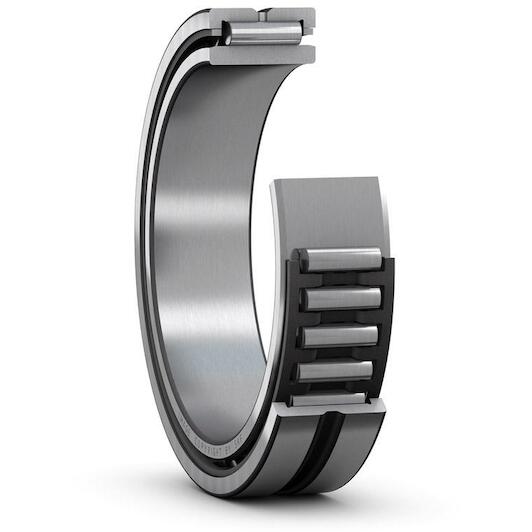

SKF NKI 22/16 needle roller bearing with inner ring 22x34x16 mm

Supplier number: SKF NKI 22/16 | EAN 7316577014542

Recommended Retail Price €76.86

37.60 tax incl.

€31.07 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Compact load capacity with Skf

Practical benefits

High radial load rating: You can support heavy radial forces in tight assemblies thanks to the high roller count.
Space-saving low profile: The low cross-sectional height allows you to fit bearings into narrow spaces without compromising stiffness.
Easy separable installation: The detachable inner ring enables you to mount the inner and outer rings separately with ease.

In a nutshell

The right choise for

With the Skf nki 22/16 single-row needle roller bearing, you gain reliable and high radial load capacity within tight installation spaces. Its low cross-sectional height provides high stiffness while fitting easily into compact machinery designs. Because it comes complete with a solid inner ring, there is no need for a hardened and ground shaft to act as a raceway. Featuring dimensions of 22X34X16 mm, this open bearing uses a separable design so you can mount and maintain the inner and outer rings independently in gearboxes, pumps, and industrial transmissions.

Product information FAQ

€37.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 22 mm
Width: 16 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 34 mm

Product description

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 22 mm
Width: 16 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 34 mm
Aligning feature: Without
Bearing part: Complete bearing
Tolerance class: Normal
Radial internal clearance: CN
Reference speed: 15000
Basic static load rating: 26
Relubrication feature: With
Number of flanges, outer ring: 2
Lubricant: None
Cage: Sheet metal
Sealing: Without
Outer ring type: Machined (solid)
Limiting speed: 17000
Bore diameter: 22
Basic dynamic load rating: 15.7
Coating: Without
Outer diameter: 34
Material, bearing: Bearing steel

Brand SKF
01290042
EAN 7316577014542
Supplier number SKF NKI 22/16

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this bearing?: The bearing has a bore diameter of 22 mm, an outside diameter of 34 mm, and a width of 16 mm.
Does this needle roller bearing include an inner ring?: Yes, the NKI 22/16 model is a complete bearing assembly that includes a solid inner ring.
Does this needle roller bearing have seals?: No, this is an open bearing without integrated seals, designed for oil or grease lubrication.
Is the design of this bearing separable?: Yes, the inner ring and outer ring with needle roller assembly can be mounted independently.
What loads can this type of bearing support?: This single-row bearing provides very high radial load carrying capacity and stiffness with a low cross-sectional height.
