SKF

SKF NKI 35/20 TN needle roller bearing with inner ring 35x50x20 mm

This article is not available

Successor to this product

skf_nki3520tn

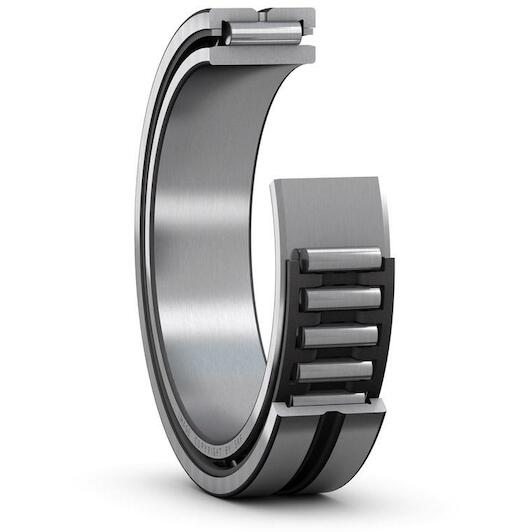

SKF NKI 35/20 Single-row needle roller bearing with solid...
View product

Product description

  • Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

Avantages

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 35 mm
  • Width: 20 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Plastic
  • Outer diameter: 50 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316573415893
  • Supplier number: SKF NKI 35/20 TN
Inner diameter
35 mm
Width
20 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Plastic
Outer diameter
50 mm
Aligning feature
Without
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Lubricant
None
Basic static load rating
60 kN
Relubrication feature
With
Reference speed
10,000 r/min
Number of flanges, outer ring
2
Seal type
Not applicable
Cage
Non-metallic
Sealing
Without
Outer ring type
Machined (solid)
Limiting speed
11,000 r/min
Bore diameter
35 mm
Basic dynamic load rating
29.7 kN
Coating
Without
Outside diameter
50 mm
Material, bearing
Bearing steel
