SKF

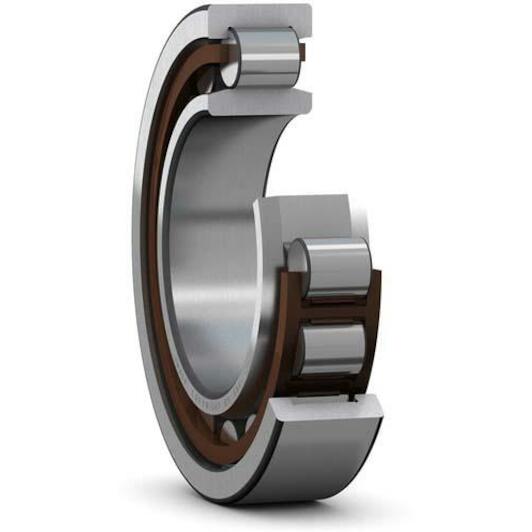

SKF NU 1014 ECP Single-row cylindrical roller bearing with NU design 70 mm

Recommended Retail Price €733.54
362.95 tax incl.
€299.96 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 20 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 110 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571565392
  • Supplier number: SKF NU 1014 ECP
Inner diameter
70 mm
Width
20 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
110 mm
Basic static load rating
93
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Lubricant
None
Relubrication feature
Without
Reference speed
7000
Skf performance class
SKF Explorer
Locating feature, bearing outer ring
None
Cage
Non-metallic
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
7000
Bore diameter
70
Basic dynamic load rating
86.5
Coating
Without
Outside diameter
110
Axial displacement capability
In both directions
