SKF

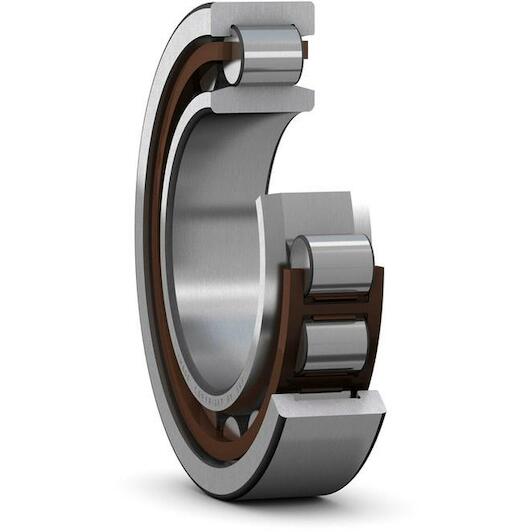

SKF NU 208 ECP single-row cylindrical roller bearing 40 x 80 x 18 mm

Recommended Retail Price €145.72
71.95 tax incl.
€59.46 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 2 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 40 mm
  • Width: 18 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 80 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577030931
  • Supplier number: SKF NU 208 ECP
Inner diameter
40 mm
Width
18 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
80 mm
Basic static load rating
53
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Cage
Non-metallic
Relubrication feature
Without
Reference speed
9500
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
11000
Bore diameter
40
Basic dynamic load rating
62
Coating
Without
Outside diameter
80
Axial displacement capability
In both directions
