What are the dimensions of this SKF bearing?

The bearing has a 55 mm bore diameter, a 100 mm outside diameter, and a 25 mm width.

What type of load does the NU design support?

This bearing accommodates high radial loads and allows axial displacement in both directions.

What material is the cage made from?

The ECP designation indicates a glass-fibre reinforced plastic cage.

What internal clearance does this bearing have?

This bearing has standard normal radial internal clearance (CN).

Does this bearing come with seals?

No, this is an open bearing without integrated seals.

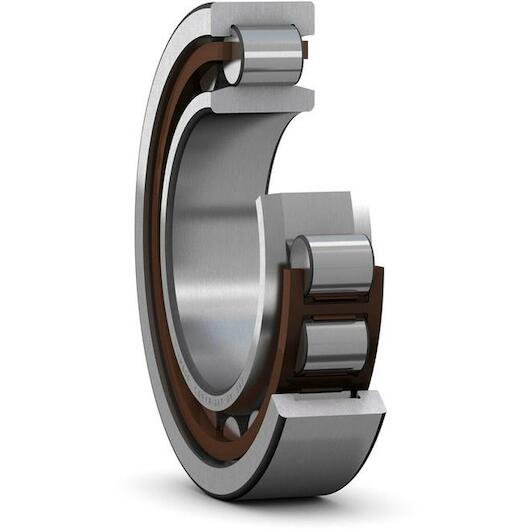

SKF NU 2211 ECP single-row cylindrical roller bearing 55 x 100 x 25 mm

Supplier number: SKF NU 2211 ECP | EAN 7316577030320

Recommended Retail Price €233.78

115.60 tax incl.

€95.54 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 16/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Dependable performance for high radial loads by Skf

Practical benefits

High radial load capacity: You effortlessly handle demanding radial forces thanks to the optimized single-row cylindrical roller design.
Quick and easy mounting: You simplify installation and maintenance procedures because the separable ring design allows for independent component assembly.
Smooth axial displacement: You prevent shaft-binding stress as the flange-free inner ring accommodates axial expansion smoothly in both directions.

In a nutshell

The right choise for

With the Skf nu 2211 ecp cylindrical roller bearing, you reliably handle demanding radial loads in electric motors, gearboxes, and industrial drive systems. Its single-row roller arrangement and glass-fibre reinforced plastic cage effectively reduce friction and operating noise. The flange-free nu design accommodates axial shaft displacement in both directions, absorbing thermal expansion smoothly without creating internal stress. Thanks to the separable component design, you can mount, dismount, and service the 55 x 100 x 25 mm inner and outer rings with speed and precision.

Product information FAQ

€115.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 25 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 100 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 55 mm
Width: 25 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 100 mm
Basic static load rating: 118
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 7500
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 8000
Bore diameter: 55
Basic dynamic load rating: 114
Coating: Without
Outer diameter: 100
Axial displacement capability: In both directions

Brand SKF
01070154
EAN 7316577030320
Supplier number SKF NU 2211 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bearing has a 55 mm bore diameter, a 100 mm outside diameter, and a 25 mm width.
What type of load does the NU design support?: This bearing accommodates high radial loads and allows axial displacement in both directions.
What material is the cage made from?: The ECP designation indicates a glass-fibre reinforced plastic cage.
What internal clearance does this bearing have?: This bearing has standard normal radial internal clearance (CN).
Does this bearing come with seals?: No, this is an open bearing without integrated seals.
