What are the dimensions of this SKF cylindrical roller bearing?

This bearing has a 35 mm bore diameter, an 80 mm outside diameter, and a width of 21 mm.

What material is the cage made of?

This bearing is equipped with a non-metallic polyamide (plastic) cage.

Is this SKF bearing sealed?

No, this is an open bearing without built-in seals.

What is the radial internal clearance of this bearing?

This bearing has standard normal radial internal clearance (CN).

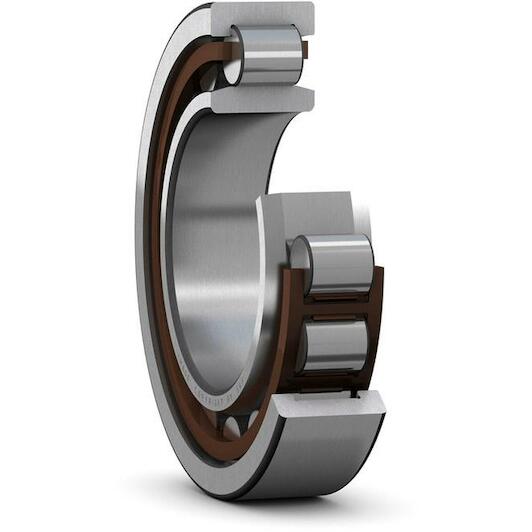

SKF NU 307 ECP single-row cylindrical roller bearing 35 x 80 x 21 mm

Supplier number: SKF NU 307 ECP | EAN 7316577025395

Recommended Retail Price €155.45

76.80 tax incl.

€63.47 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 15/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable Skf roller bearings for heavy radial loads

Practical benefits

High radial load capacity: The cylindrical roller geometry distributes heavy radial loads evenly, ensuring your machinery runs smoothly under demanding industrial conditions.
Low friction smooth running: Fitted with a lightweight polyamide cage, you benefit from reduced friction, lower operating temperatures, and extended component life.
Simplified mounting and maintenance: The separable NU design allows you to install inner and outer rings independently, making assembly and machine servicing effortless.

In a nutshell

The right choise for

With the Skf nu 307 ecp single-row cylindrical roller bearing, you ensure smooth and reliable operation for machinery under heavy radial loads. Measuring 35 x 80 x 21 mm, this open bearing is an ideal solution for electric motors, pumps, compressors, and industrial gearboxes. The nu design features two flanges on the outer ring, allowing the bearing to accommodate axial displacement and thermal shaft expansion with ease. Its lightweight glass-fibre reinforced polyamide cage significantly reduces friction and heat build-up, promoting quiet running and extended service life. In addition, the separable construction with normal radial internal clearance makes mounting, inspection, and maintenance straightforward.

Product information FAQ

€76.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 21 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 80 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 21 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 80 mm
Basic static load rating: 63
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 9500
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 11000
Bore diameter: 35
Basic dynamic load rating: 75
Coating: Without
Outer diameter: 80
Axial displacement capability: In both directions

Brand SKF
01070090
EAN 7316577025395
Supplier number SKF NU 307 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF cylindrical roller bearing?: This bearing has a 35 mm bore diameter, an 80 mm outside diameter, and a width of 21 mm.
What characterizes the NU design of this bearing?: The NU design features two flanges on the outer ring and no flanges on the inner ring, allowing axial displacement.
What material is the cage made of?: This bearing is equipped with a non-metallic polyamide (plastic) cage.
Is this SKF bearing sealed?: No, this is an open bearing without built-in seals.
What is the radial internal clearance of this bearing?: This bearing has standard normal radial internal clearance (CN).
