SKF

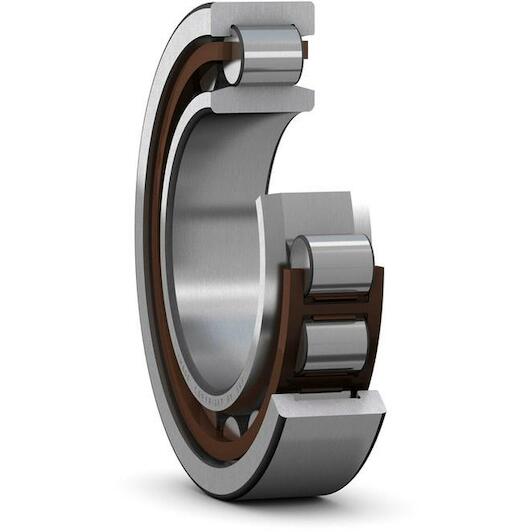

SKF NU 314 ECP single-row cylindrical roller bearing 70 x 150 x 35 mm

Recommended Retail Price €476.04
235.60 tax incl.
€194.71 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 3 products in stock.
each

  • Ordered before 20:00 - delivered as of 15/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 35 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577022479
  • Supplier number: SKF NU 314 ECP
Inner diameter
70 mm
Width
35 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
150 mm
Basic static load rating
228
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Cage
Non-metallic
Relubrication feature
Without
Reference speed
4800
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
5600
Bore diameter
70
Basic dynamic load rating
236
Coating
Without
Outside diameter
150
Axial displacement capability
In both directions
