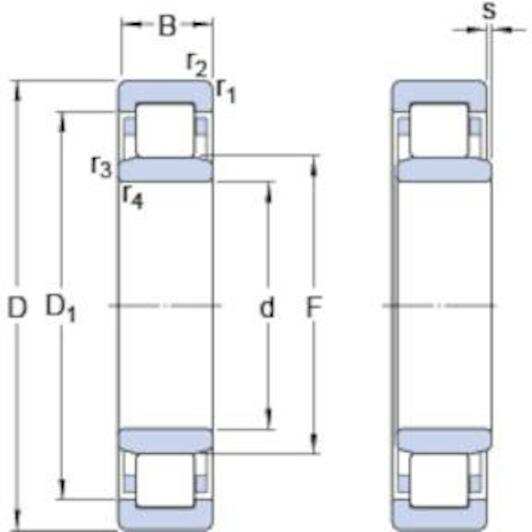

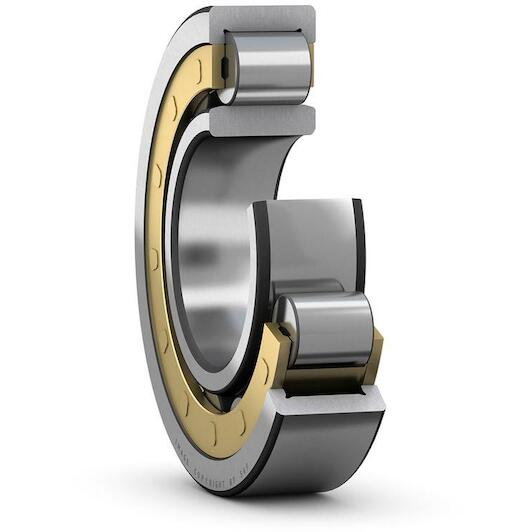

SKF NU 334 ECM/C3 single-row cylindrical roller bearing 170 x 360 x 72 mm

Supplier number: SKF NU 334 ECM/C3 | EAN 7316572447864
Recommended Retail Price €7,994.65
3,957.95 tax incl.
€3,271.03 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

  • Ordered before 20:00 - delivered as of 10/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium


€3,957.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 170 mm
  • Width: 72 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (solid)
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 360 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

Documents

All Features

Inner diameter
170 mm
Width
72 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (solid)
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
360 mm
Basic static load rating
1180
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Relubrication feature
Without
Reference speed
1700
Lubricant
None
Cage
Machined metal
Locating feature, bearing outer ring
None
Candidate for remanufacturing
Yes
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
2200
Bore diameter
170
Basic dynamic load rating
952
Coating
Without
Outside diameter
360
Axial displacement capability
In both directions
  • Brand SKF
  • EAN 7316572447864
  • Supplier number SKF NU 334 ECM/C3
