What are the main dimensions of the SKF NUKR 35 A?

This cam follower has an outside diameter of 35 mm, an overall length of 52 mm, an outer ring width of 18 mm, and a 16 mm stud diameter (M16x1.5 thread).

Does this cam follower include an eccentric collar?

No, this version features a concentric stud without an eccentric collar for fixed, direct-alignment mounting.

What is the profile of the outer ring running surface?

It features a crowned outer ring profile, which helps reduce edge stresses caused by misalignment or tilting.

Can the SKF NUKR 35 A be relubricated?

Yes, it is equipped with relubrication ducts located at each stud end and through the stud shank.

What internal bearing design does this cam follower use?

It features a double-row full complement cylindrical roller design without a cage, built for heavy radial load capacity.

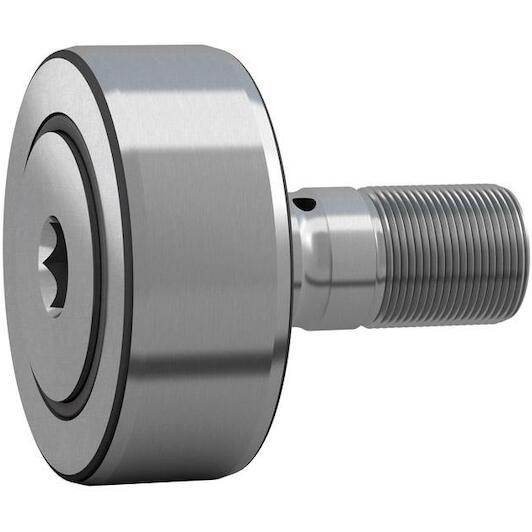

SKF NUKR 35 A cam roller with integrated seal and relubrication 35 mm

Supplier number: SKF NUKR 35 A | EAN 7316570320756

Recommended Retail Price €186.06

91.80 tax incl.

€75.87 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Heavy-duty tracking with Skf cam follower

Practical benefits

High radial load capacity: The double-row full complement design lets you support heavy radial forces and tilting loads reliably.
Quick and direct mounting: You install the cam follower firmly onto machine frames using the solid 16 mm threaded stud.
Extended component lifespan: Integrated seals protect against debris while the built-in relubrication channel keeps your operation running smoothly.

In a nutshell

The right choise for

Equip your machinery, cam drives, and conveyor systems with the Skf nukr 35 a cam follower for dependable, heavy-duty guidance. Designed with a double-row full complement of cylindrical rollers, it effortlessly handles high radial forces and shock loads. The crowned profile on the 35 mm outer ring reduces edge stresses caused by tilting or misalignment, ensuring smooth running and reduced wear. Thanks to the solid 16 mm threaded stud, you can mount the unit directly and securely into your machine frame. Built-in seals keep out contaminants, while practical relubrication ports allow quick servicing to extend component service life.

Product information FAQ

€91.80

In stock - tax incl.

Key features according to our expert

Outer diameter: 35 mm
Stud diameter: 16 mm
With eccentric collar: NO
Number of rows: 2
Outer ring profile: Spherical
Width: 52 mm

Product description

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.

High radial load carrying capacity
Accommodate relatively heavy axial loads due to skew or tilting
Long service life
Easy to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Outer diameter: 35 mm
Stud diameter: 16 mm
With eccentric collar: NO
Number of rows: 2
Outer ring profile: Spherical
Width: 52 mm
Width, outer ring: 18
Basic static load rating: 17.6
Relubrication feature: Centre of each stud end and radial hole in stud shank
Lubricant: Grease
Feature for tightening: Hexagonal recess
Sealing type: Labyrinth
Cage: Without
Tolerance class: Other
Material, bearing: Bearing steel
Functional outside diameter: 35
Rolling elements: Cylindrical rollers
Radial internal clearance: Between C2 and CN
Limiting speed: 5000
Sealing: Seal on both sides
Number of flanges, outer ring: 2
Basic dynamic load rating: 16.8
Coating: Without
Length: 52
Stud alignment: Centric

Brand SKF
01210077
EAN 7316570320756
Supplier number SKF NUKR 35 A

Frequently asked questions about this product

Answered by specialists

What are the main dimensions of the SKF NUKR 35 A?: This cam follower has an outside diameter of 35 mm, an overall length of 52 mm, an outer ring width of 18 mm, and a 16 mm stud diameter (M16x1.5 thread).
Does this cam follower include an eccentric collar?: No, this version features a concentric stud without an eccentric collar for fixed, direct-alignment mounting.
What is the profile of the outer ring running surface?: It features a crowned outer ring profile, which helps reduce edge stresses caused by misalignment or tilting.
Can the SKF NUKR 35 A be relubricated?: Yes, it is equipped with relubrication ducts located at each stud end and through the stud shank.
What internal bearing design does this cam follower use?: It features a double-row full complement cylindrical roller design without a cage, built for heavy radial load capacity.
