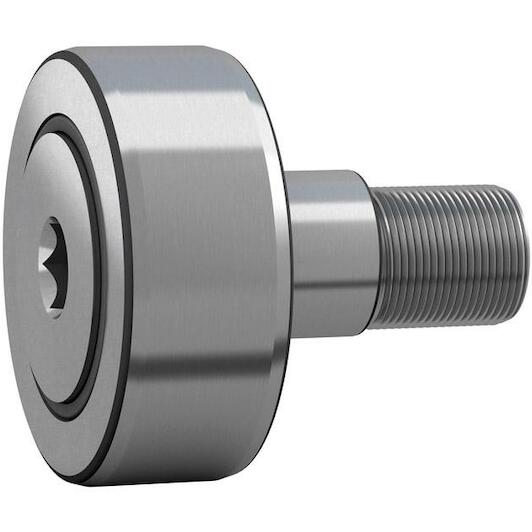

SKF NUKRE 40 A cam roller with eccentric collar, integrated seal and relubrication 40 mm

Recommended Retail Price €298.37
147.20 tax incl.
€121.65 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with a threaded solid stud instead of an inner ring. The design includes an eccentric collar pressed onto the stud, and a thick-walled outer ring with a crowned running surface. The bearings are supplied sealed and ready-to-mount, and can be relubricated via the stud.

  • High radial load carrying capacity
  • Accommodate relatively heavy axial loads due to skew or tilting
  • Long service life
  • Easy to mount
  • Sealed for increased reliability, with relubrication feature
Key features according to our expert
  • Outer diameter: 40 mm
  • Stud diameter: 22 mm
  • With eccentric collar: Yes
  • Number of rows: 2
  • Outer ring profile: Spherical
  • Width: 58 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570376265
  • Supplier number: SKF NUKRE 40 A
Outer diameter
40 mm
Stud diameter
22 mm
With eccentric collar
Yes
Number of rows
2
Outer ring profile
Spherical
Width
58 mm
Width, outer ring
20
Basic static load rating
22
Relubrication feature
Centre of each stud end
Lubricant
Grease
Feature for tightening
Hexagonal recess
Sealing type
Labyrinth
Cage
Without
Tolerance class
Other
Material, bearing
Bearing steel
Functional outside diameter
40
Rolling elements
Cylindrical rollers
Radial internal clearance
Between C2 and CN
Limiting speed
4500
Sealing
Seal on both sides
Number of flanges, outer ring
2
Basic dynamic load rating
19
Coating
Without
Length
58
Stud alignment
Centric stud with eccentric collar
