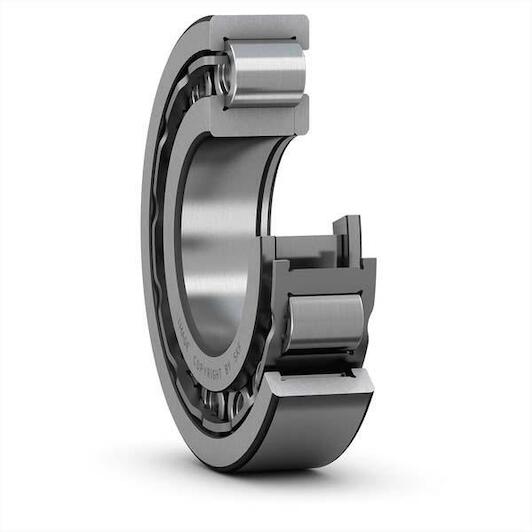

SKF NUP 208 ECJ Single-row cylindrical roller bearing with NUP design 40 mm

Recommended Retail Price €245.62
121.60 tax incl.
€100.50 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 40 mm
  • Width: 18 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 80 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570450644
  • Supplier number: SKF NUP 208 ECJ
Inner diameter
40 mm
Width
18 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
80 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
Inner ring loose flange
Basic static load rating
53
Cage
Sheet metal
Reference speed
9500
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Number of flanges, inner ring
1
Bearing part
Complete bearing
Bore diameter
40
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
11000
Basic dynamic load rating
62
Coating
Without
Outside diameter
80
Axial displacement capability
None
