What are the exact dimensions of this SKF support roller?

The support roller has an outer diameter of 62 mm, a bore diameter of 25 mm, and a total width of 25 mm.

What applications is the SKF NUTR 2562 A suitable for?

It is designed for cam drives, conveyor systems, and track rails handling high radial loads.

Can this support roller be relubricated?

Yes, the inner ring features a lubrication hole to facilitate relubrication.

What running surface profile does the outer ring have?

The outer ring has a crowned running surface to accommodate tilting and prevent edge stress.

Is the support roller sealed against contamination?

Yes, it is fitted with integral labyrinth seals on both sides to keep contaminants out.

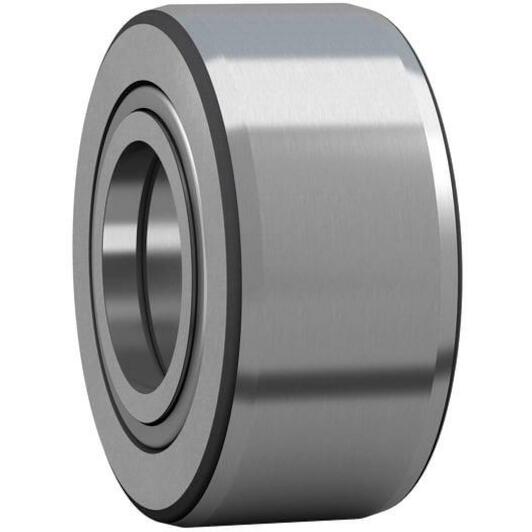

SKF NUTR 2562 A support roller with inner ring and flange seal (Yoke type track roller) 62 x 25 x 25 mm

Supplier number: SKF NUTR 2562 A | EAN 7316570169874

Recommended Retail Price €256.71

126.60 tax incl.

€104.63 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Heavy-duty Skf track roller for guide systems

Practical benefits

High radial load capacity: The double-row full complement cylindrical rollers allow you to handle heavy radial loads and tilting forces effortlessly in demanding applications.
Ready for immediate mounting: Featuring integral labyrinth seals to keep contaminants out, you can install this support roller right away onto your machinery tracks.
Convenient and easy relubrication: A dedicated lubrication hole in the inner ring lets you apply grease smoothly to ensure a long operational service life.

In a nutshell

The right choise for

Keep your industrial guide systems and conveyors running smoothly with the Skf nutr 2562 a support roller. Built with a double-row full complement of cylindrical rollers and a crowned outer ring, it effortlessly handles heavy radial peak loads and tilting forces. Integral labyrinth seals keep contaminants out, allowing you to mount the unit right out of the box onto cam drives and track rails. Thanks to the dedicated lubrication hole in the inner ring, you can quickly relubricate the bearing during maintenance, ensuring minimal downtime and maximum operational life.

Product information FAQ

€126.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 25 mm
Outer diameter: 62 mm

Product description

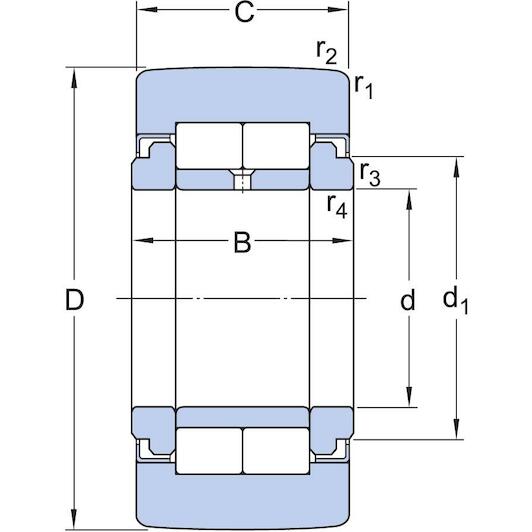

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with an inner ring and have a thick-walled outer ring with an improved crowned running surface. They are supplied sealed and ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication.

High radial load carrying capacity
Accommodate relatively heavy axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 25 mm
Outer diameter: 62 mm
Axial guidance of outer ring: Yes
Rolling elements: Cylindrical rollers
Functional outside diameter: 62
Material, bearing: Bearing steel
Cage: Without
Sealing type: Labyrinth
Width, outer ring: 24
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 48
Radial internal clearance: Between C2 and CN
Tolerance class: Other
Bearing part: Complete track roller
Number of flanges, outer ring: 2
Sealing: Seal on both sides
Width, total: 25
Outer ring profile: Crowned
Limiting speed: 3200
Bore diameter: 25
Number of rows: 2
Basic dynamic load rating: 35.8
Coating: Without
Application: Support roller

Brand SKF
01210184
EAN 7316570169874
Supplier number SKF NUTR 2562 A

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF support roller?: The support roller has an outer diameter of 62 mm, a bore diameter of 25 mm, and a total width of 25 mm.
What applications is the SKF NUTR 2562 A suitable for?: It is designed for cam drives, conveyor systems, and track rails handling high radial loads.
Can this support roller be relubricated?: Yes, the inner ring features a lubrication hole to facilitate relubrication.
What running surface profile does the outer ring have?: The outer ring has a crowned running surface to accommodate tilting and prevent edge stress.
Is the support roller sealed against contamination?: Yes, it is fitted with integral labyrinth seals on both sides to keep contaminants out.
