SKF

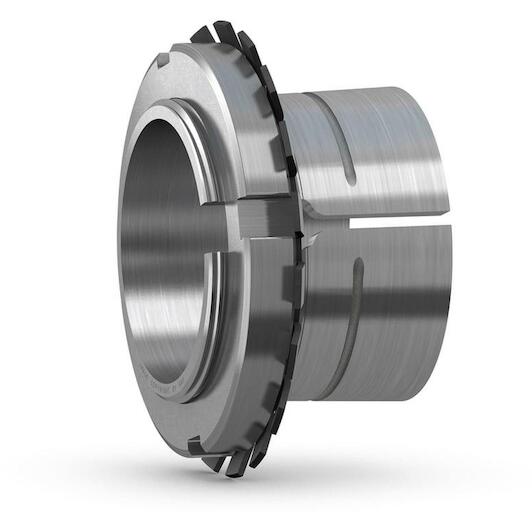

SKF OH 3144 H Bushing for metric axles 200 x 161 mm Tr220x4

Recommended Retail Price €2,967.49
1,469.20 tax incl.
€1,214.21 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. These sleeves enable use of the oil injection method to mount and dismount bearings, and they are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device
Key features according to our expert
  • Inner diameter: 200 mm
  • Width: 161 mm
  • Thread nominal size*: Tr220 x 4
Specifications / All features
  • Brand: SKF
  • EAN: 7316570646566
  • Supplier number: SKF OH 3144 H
Inner diameter
200 mm
Width
161 mm
Thread nominal size*
Tr220 x 4
Bore diameter
200
Taper
1:12
Holes for oil injection
With
Thread designation
Tr220x4
