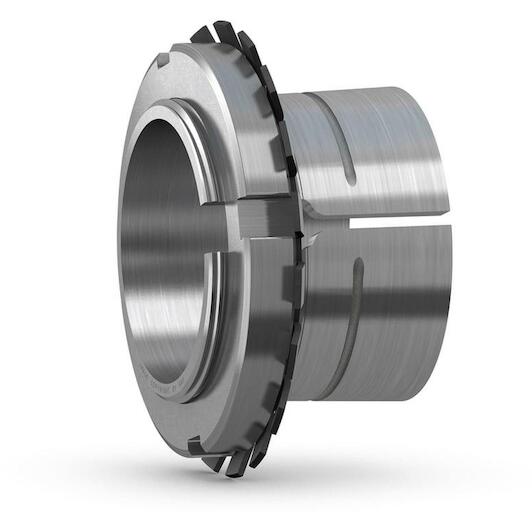

SKF OH 3156 H Bushing for metric axles 260 x 195 mm Tr280x4

SKF
Supplier number: SKF OH 3156 H | EAN 7316570381849
Recommended Retail Price €3,615.93
1,790.20 tax incl.
€1,479.50 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€1,790.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 260 mm
  • Width: 195 mm
  • Thread size*: Tr280 x 4

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. These sleeves enable use of the oil injection method to mount and dismount bearings, and they are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
260 mm
Width
195 mm
Thread size*
Tr280 x 4
Bore diameter
260
Taper
1:12
Holes for oil injection
With
Thread designation
Tr280x4
  • Brand SKF
  • EAN 7316570381849
  • Supplier number SKF OH 3156 H
