Does the SKF PCM 040510 E/VB055 have a flange?

No, this is a straight cylindrical plain bushing without a flange.

Does this PTFE composite bushing require lubrication?

No, the self-lubricating PTFE composite sliding layer ensures completely maintenance-free operation.

What types of motion is this bushing suitable for?

It is suitable for rotating, oscillating, and linear movements under radial loads.

What material is this plain bushing made of?

It is made from a PTFE composite material that offers high load carrying capacity with low friction.

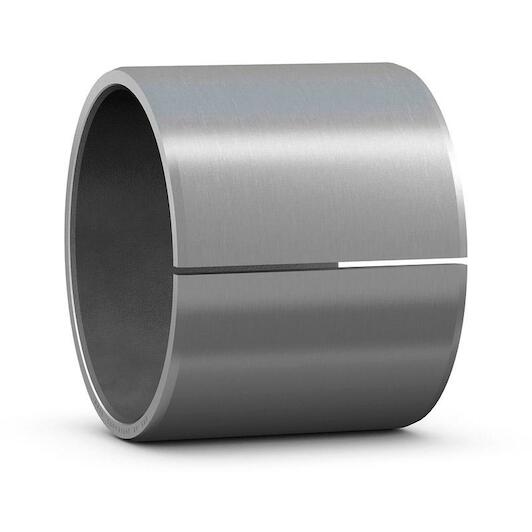

SKF PCM 040510 E/VB055 plain bearing bush PTFE composite 4 x 5.5 x 10 mm

Supplier number: SKF PCM 040510 E/VB055 | EAN 7316572196359

0.98 tax incl.

€0.81 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation without lubrication

Practical benefits

Reliable Skf bushing performance: You achieve minimal frictional resistance thanks to the self-lubricating PTFE composite layer.
High radial load capacity: The slim cylindrical design easily accommodates heavy radial forces and oscillating motions.
Completely maintenance-free operation: You eliminate the need for periodic relubrication while preventing unplanned machine downtime.

In a nutshell

The right choise for

With the Skf pcm 040510 E/VB055 straight plain bushing, you achieve smooth, low-friction motion in compact assemblies. Thanks to the self-lubricating ptfe composite layer, you benefit from completely maintenance-free operation without needing external grease lubrication. Featuring an inside diameter of 4 mm, an outside diameter of 5.5 mm, and a width of 10 mm, this flangeless cylindrical bushing fits seamlessly into tight spaces. It accommodates heavy radial loads across rotating, oscillating, and linear movements. By preventing metal-on-metal shaft wear, you eliminate unplanned downtime and keep your mechanical pivot points running reliably.

Product information FAQ

€0.98

In stock - tax incl.

Key features according to our expert

Inner diameter: 4 mm
Width: 10 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 5,5 mm

Product description

SKF PTFE composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.

Maintenance-free operation
Cost-effective with long service life
High operating temperatures
High load carrying capacity
High sliding velocity and small operating clearance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 4 mm
Width: 10 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 5,5 mm
Material: PTFE composite
Relubrication feature: Without
Basic static load rating: 10
Bore diameter: 4
Basic dynamic load rating: 3.2
Outer diameter: 5.5
Design: Straight

Brand SKF
01331124
EAN 7316572196359
Supplier number SKF PCM 040510 E/VB055

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF plain bushing?: The bushing has an inside diameter of 4 mm, an outside diameter of 5.5 mm, and a width of 10 mm.
Does the SKF PCM 040510 E/VB055 have a flange?: No, this is a straight cylindrical plain bushing without a flange.
Does this PTFE composite bushing require lubrication?: No, the self-lubricating PTFE composite sliding layer ensures completely maintenance-free operation.
What types of motion is this bushing suitable for?: It is suitable for rotating, oscillating, and linear movements under radial loads.
What material is this plain bushing made of?: It is made from a PTFE composite material that offers high load carrying capacity with low friction.
