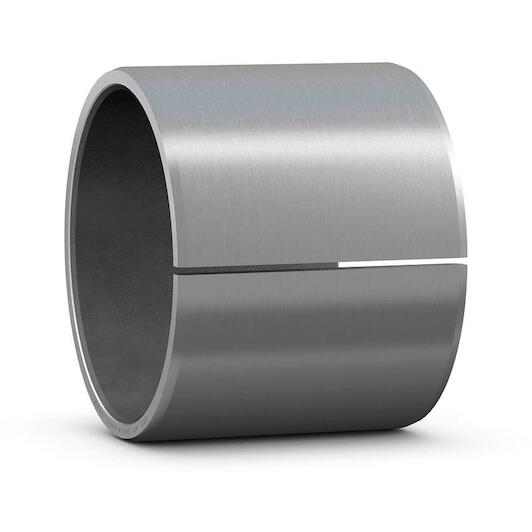

SKF PCM 101212 E plain bearing bush PTFE composite 10 x 12 x 12 mm

Supplier number: SKF PCM 101212 E | EAN 7316571851556

1.33 tax incl.

€1.10 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf

Practical benefits

Maintenance free self lubrication: The composite PTFE sliding layer ensures you operate smoothly without the need for periodic relubrication.
High radial load capacity: Despite the compact thin-walled design, you can reliably support heavy radial loads across demanding mechanical applications.
Efficient heat dissipation performance: You achieve higher sliding velocities safely thanks to optimal thermal conductivity that reduces operational wear.

In a nutshell

The right choise for

With the Skf pcm 101212 e straight ptfe composite plain bearing bush, you achieve smooth, low-friction operation in tight mechanical assemblies. The self-lubricating ptfe composite layer ensures completely maintenance-free performance without the need for periodic relubrication. Despite its compact dimensions of a 10 mm inside diameter, 12 mm outside diameter, and 12 mm width, this cylindrical bush reliably supports heavy radial loads. Its efficient heat dissipation minimizes wear during rotating, oscillating, and linear movements, keeping your industrial machinery and equipment running smoothly and reliably.

Product information FAQ

€1.33

In stock - tax incl.

Key features according to our expert

Inner diameter: 10 mm
Width: 12 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 12 mm

Product description

SKF PTFE composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.

Maintenance-free operation
Cost-effective with long service life
High operating temperatures
High load carrying capacity
High sliding velocity and small operating clearance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 10 mm
Width: 12 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 12 mm
Material: PTFE composite
Relubrication feature: Without
Basic static load rating: 30
Bore diameter: 10
Basic dynamic load rating: 9.65
Outside diameter: 12
Design: Straight

Brand SKF
01330736
EAN 7316571851556
Supplier number SKF PCM 101212 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this plain bearing bush?: This bushing has an inside diameter of 10 mm, an outside diameter of 12 mm, and a width of 12 mm.
Does this bushing have a flange or collar?: No, this is a straight cylindrical bush without a flange or collar.
Does this SKF bush require lubrication?: No, thanks to the self-lubricating PTFE composite layer, it operates completely maintenance-free.
What types of movement does this bush support?: It is suitable for rotating, oscillating, and linear movements under radial loads.
