What are the dimensions of this SKF plain bushing?

The bushing has an inside diameter of 12 mm, an outside diameter of 14 mm, and a width of 8 mm.

Does this plain bearing require lubrication?

No, thanks to the self-lubricating PTFE composite layer, it is completely maintenance-free.

Does the SKF PCM 121408 E have a flange?

No, this is a straight cylindrical bushing without a flange.

Which movement types is this bushing suitable for?

It is suitable for oscillating, rotating, and linear movements accommodating radial loads.

What material is this bushing made of?

It is made of a PTFE composite sliding material on a steel backing.

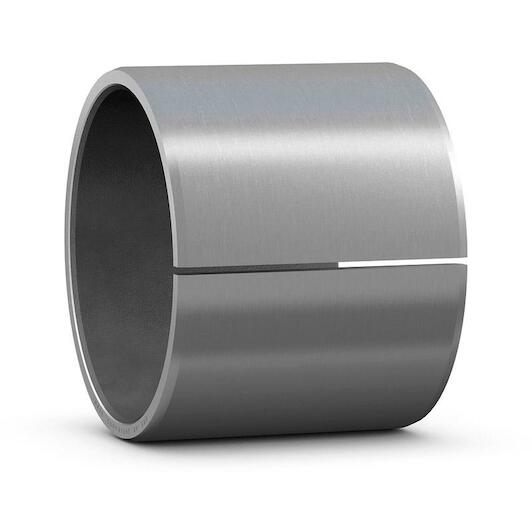

SKF PCM 121408 E plain bearing bush PTFE composite 12 x 14 x 8 mm

Supplier number: SKF PCM 121408 E | EAN 7316571851631

1.48 tax incl.

€1.22 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Low friction with Skf PCM 121408 E

Practical benefits

Maintenance-free dry running: The self-lubricating PTFE composite layer ensures you get minimal friction without external lubrication.
High radial load capacity: A thin-walled compact design allows you to support heavy radial forces reliably.
Efficient heat dissipation: Good thermal conductivity ensures you can achieve relatively high sliding velocities with stability.

In a nutshell

The right choise for

With the Skf pcm 121408 e plain bearing bushing, you achieve smooth, dependable performance in compact assemblies where rolling bearings cannot fit. Its self-lubricating ptfe composite sliding layer minimizes friction without needing external oil or grease, preventing shaft seizing on 12 mm shafts. Despite its thin-walled cylindrical design without a flange, this bushing easily supports heavy radial loads during rotating, oscillating, or linear movements. Thanks to efficient heat dissipation, you can reliably reach higher sliding velocities and maximize the service life of your machine components and cylinder linkages.

Product information FAQ

€1.48

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Width: 8 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 14 mm

Product description

SKF PTFE composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.

Maintenance-free operation
Cost-effective with long service life
High operating temperatures
High load carrying capacity
High sliding velocity and small operating clearance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Width: 8 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 14 mm
Material: PTFE composite
Relubrication feature: Without
Basic static load rating: 24
Bore diameter: 12
Basic dynamic load rating: 7.65
Outer diameter: 14
Design: Straight

Brand SKF
01330693
EAN 7316571851631
Supplier number SKF PCM 121408 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF plain bushing?: The bushing has an inside diameter of 12 mm, an outside diameter of 14 mm, and a width of 8 mm.
Does this plain bearing require lubrication?: No, thanks to the self-lubricating PTFE composite layer, it is completely maintenance-free.
Does the SKF PCM 121408 E have a flange?: No, this is a straight cylindrical bushing without a flange.
Which movement types is this bushing suitable for?: It is suitable for oscillating, rotating, and linear movements accommodating radial loads.
What material is this bushing made of?: It is made of a PTFE composite sliding material on a steel backing.
