What are the dimensions of this plain bushing?

This straight plain bushing has an inside diameter of 15 mm, an outside diameter of 17 mm, and a width of 10 mm.

Does this SKF plain bushing require lubrication?

No, thanks to the self-lubricating PTFE composite layer, it provides completely maintenance-free operation.

Does this bushing have a flange or collar?

No, this is a straight (cylindrical) bushing without a collar or flange.

What types of movements and loads does it support?

It is suitable for rotating, oscillating, and linear movements, accommodating high radial loads.

What is the operating temperature range?

The bushing operates reliably in temperatures ranging from -200 °C to +250 °C.

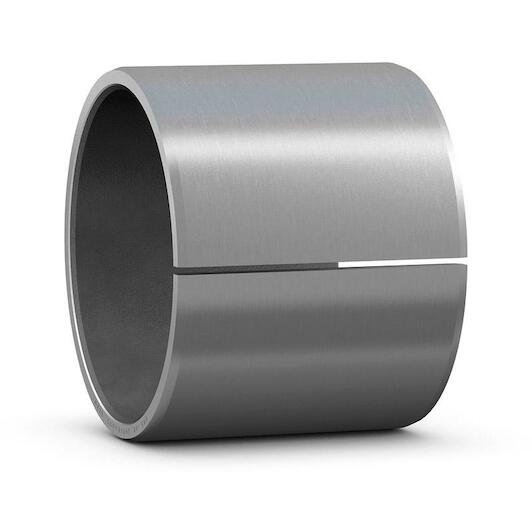

SKF PCM 151710 E plain bearing bush PTFE composite 15 x 17 x 10 mm

Supplier number: SKF PCM 151710 E | EAN 7316572196410

1.60 tax incl.

€1.32 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth motion with the Skf bushing

Practical benefits

Completely maintenance free operation: The self-lubricating PTFE composite sliding layer ensures you achieve smooth movement without requiring any additional grease.
High radial load capacity: Despite the compact 15 x 17 x 10 mm design, you can safely accommodate heavy radial forces.
Efficient heat dissipation performance: The thin-walled composite construction effectively dissipates friction heat so you maintain reliable performance at high sliding speeds.

In a nutshell

The right choise for

With the Skf pcm 151710 e straight plain bushing, you ensure smooth, reliable movement in compact mechanical assemblies. Thanks to the self-lubricating ptfe composite layer, this collarless cylindrical bushing operates completely maintenance-free, eliminating the need for regular greasing or oiling. Despite its thin-walled 15 x 17 x 10 mm design, it easily accommodates heavy radial loads across rotating, oscillating, and linear motions. Its efficient heat dissipation delivers stable performance at high sliding speeds, while an operating temperature range of -200 °C to +250 °C ensures dependable operation in demanding industrial environments.

Product information FAQ

€1.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 15 mm
Width: 10 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 17 mm

Product description

SKF PTFE composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.

Maintenance-free operation
Cost-effective with long service life
High operating temperatures
High load carrying capacity
High sliding velocity and small operating clearance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 15 mm
Width: 10 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 17 mm
Material: PTFE composite
Relubrication feature: Without
Basic static load rating: 37.5
Bore diameter: 15
Basic dynamic load rating: 12
Outer diameter: 17
Design: Straight

Brand SKF
01330835
EAN 7316572196410
Supplier number SKF PCM 151710 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this plain bushing?: This straight plain bushing has an inside diameter of 15 mm, an outside diameter of 17 mm, and a width of 10 mm.
Does this SKF plain bushing require lubrication?: No, thanks to the self-lubricating PTFE composite layer, it provides completely maintenance-free operation.
Does this bushing have a flange or collar?: No, this is a straight (cylindrical) bushing without a collar or flange.
What types of movements and loads does it support?: It is suitable for rotating, oscillating, and linear movements, accommodating high radial loads.
What is the operating temperature range?: The bushing operates reliably in temperatures ranging from -200 °C to +250 °C.
