What are the dimensions of this plain bushing?

This SKF bushing has an inner diameter of 25 mm, an outer diameter of 28 mm, and a width of 15 mm.

Does the SKF PCM 252815 E require lubrication?

No, the self-lubricating PTFE composite layer ensures completely maintenance-free operation.

Does this bushing have a flange?

No, this is a straight cylindrical bushing without a flange.

What types of movement is this bushing designed for?

It is suitable for rotating, oscillating, and linear movements under heavy radial loads.

What is the operating temperature range of this bushing?

This composite bushing operates reliably in temperatures ranging from -200 °C to 250 °C.

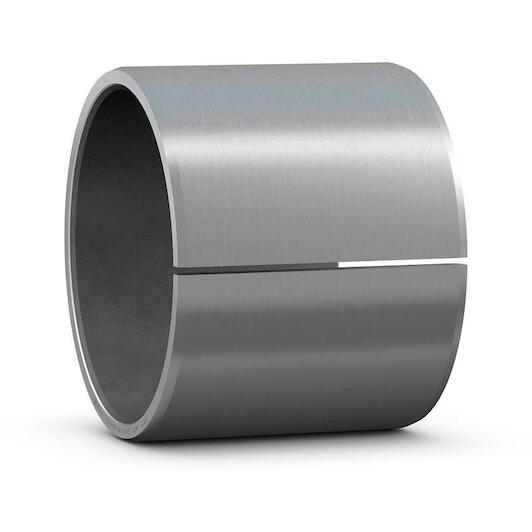

SKF PCM 252815 E plain bearing bush PTFE composite 25 x 28 x 15 mm

Supplier number: SKF PCM 252815 E | EAN 7316571875071

2.93 tax incl.

€2.42 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable Skf plain bushing for radial loads

Practical benefits

Maintenance-free self-lubricating operation: You benefit from minimal friction and smooth motion thanks to the self-lubricating PTFE composite sliding layer.
High radial load capacity: Despite its thin-walled compact design, you can easily handle heavy radial loads during operation.
Excellent heat dissipation performance: The efficient thermal dissipation ensures your machinery runs smoothly even at higher sliding velocities.

In a nutshell

The right choise for

With the Skf pcm 252815 e straight ptfe composite plain bushing, you achieve reliable, completely maintenance-free operation in compact mechanical assemblies. Its self-lubricating ptfe composite layer eliminates the need for ongoing grease or oil lubrication while preventing wear and shaft galling between a 25 mm shaft and a 28 mm housing bore. The thin-walled cylindrical design effortlessly handles heavy radial loads across rotating, oscillating, and linear movements. Featuring excellent heat dissipation and a broad temperature range from -200 °C to 250 °C, your machinery maintains smooth performance in demanding conditions.

Product information FAQ

€2.93

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 15 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 28 mm

Product description

SKF PTFE composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.

Maintenance-free operation
Cost-effective with long service life
High operating temperatures
High load carrying capacity
High sliding velocity and small operating clearance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 15 mm
With collar: No
Material (plain bearing bush): PTFE composite
Outer diameter: 28 mm
Material: PTFE composite
Relubrication feature: Without
Basic static load rating: 88
Bore diameter: 25
Basic dynamic load rating: 28.5
Outer diameter: 28
Design: Straight

Brand SKF
01330650
EAN 7316571875071
Supplier number SKF PCM 252815 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this plain bushing?: This SKF bushing has an inner diameter of 25 mm, an outer diameter of 28 mm, and a width of 15 mm.
Does the SKF PCM 252815 E require lubrication?: No, the self-lubricating PTFE composite layer ensures completely maintenance-free operation.
Does this bushing have a flange?: No, this is a straight cylindrical bushing without a flange.
What types of movement is this bushing designed for?: It is suitable for rotating, oscillating, and linear movements under heavy radial loads.
What is the operating temperature range of this bushing?: This composite bushing operates reliably in temperatures ranging from -200 °C to 250 °C.
