SKF

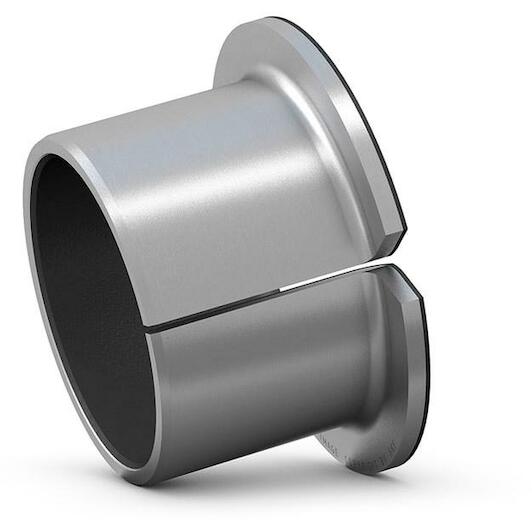

SKF PCMF 202315 E plain bearing bush PTFE composite with flange 20 x 30 x 15 mm

11.74 tax incl.
€9.70 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

The minimum purchase order quantity for the product is 25.

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

SKF PTFE composite flanged bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads as well as axial loads in one direction. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.

  • Maintenance-free operation
  • Cost-effective with long service life
  • High operating temperatures
  • High load carrying capacity
  • High sliding velocity and small operating clearance
Key features according to our expert
  • Inner diameter: 20 mm
  • Width: 15 mm
  • With collar: Yes
  • Material (plain bearing bush): PTFE composite
  • Outer diameter: 23 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572038208
  • Supplier number: SKF PCMF 202315 E
Inner diameter
20 mm
Width
15 mm
With collar
Yes
Material (plain bearing bush)
PTFE composite
Outer diameter
23 mm
Flange diameter
30
Design
Flanged
Relubrication feature
Without
Basic dynamic load rating, axial direction
17.3
Basic static load rating, radial direction
62
Basic dynamic load rating, radial direction
20
Basic static load rating, axial direction
54
Bore diameter
20
Material
PTFE composite
Outside diameter
23
Flange thickness
1.5
