SKF

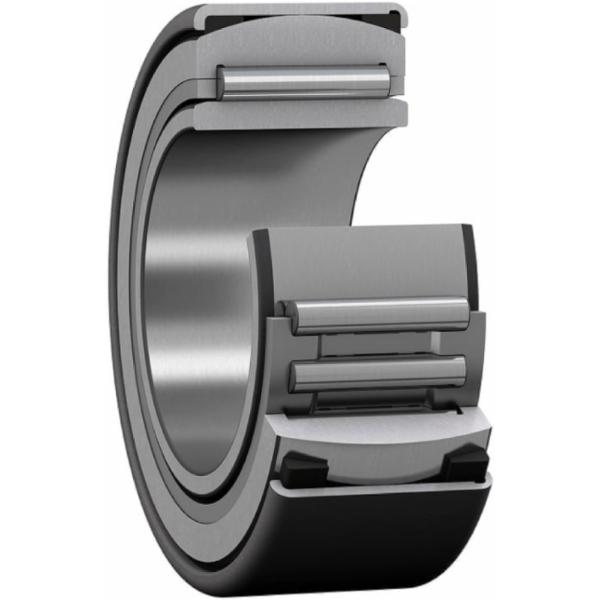

SKF PNA 15/32 single-row needle roller bearing 15 x 32 x 16 mm

This article is not available

Product description:

  • Needle roller bearings have a high load capacity despite a small diameter due to their cylindrical shape
  • This makes needle roller bearings particularly suitable where radial space is limited
Key features according to our expert
  • Outer diameter: 32 mm
  • Width: 16 mm
  • Material (cage): Brass (sheet)
  • With inner ring: Yes
  • Inner diameter: 15 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570233049
  • Supplier number: SKF PNA 15/32
Outer diameter
32 mm
Width
16 mm
Material (cage)
Brass (sheet)
With inner ring
Yes
Inner diameter
15 mm
Sealing
Without
Cage
Sheet metal
Seal type
Not applicable
Lubricant
None
Reference speed
22,000 r/min
Relubrication feature
Without
Basic static load rating
17.6 kN
Aligning feature
With
Radial internal clearance
CN
Tolerance class
Normal
Bearing part
Complete bearing
Limiting speed
24,000 r/min
Number of flanges, outer ring
2
Outer ring type
Drawn cup with open ends
Bore diameter
15 mm
Number of rows
1
Basic dynamic load rating
12.8 kN
Coating
Without
Outside diameter
32 mm
Material, bearing
Bearing steel
