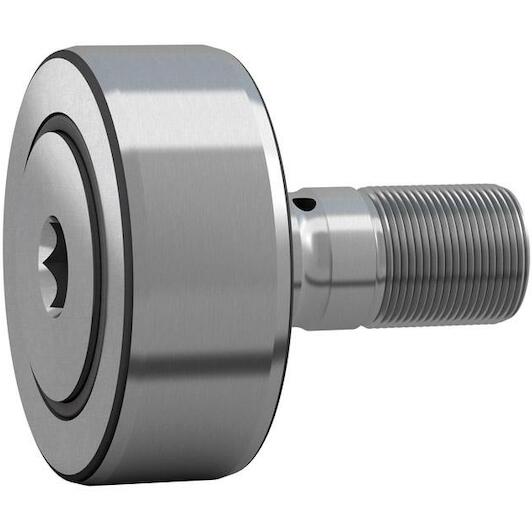

SKF PWKR 90.2RS cam roller with integrated seal and relubrication 90 mm

Recommended Retail Price €815.15

400.40 tax incl.

€330.91 excl. VAT (incl. all environmental contributions)

SKF PWKR 90.2RS cam roller with integrated seal and relubrication 90 mm

€400.40 Recommended Retail Price €815.15

On order: delivered from 21/05/2026

each

Ordered before 20:00 - delivered as of 21/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information
Additional info

Product description

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.

High radial load carrying capacity
Accommodate relatively heavy axial loads due to skew or tilting
Long service life
Easy to mount
Sealed for increased reliability, with relubrication feature

Key features according to our expert

Outer diameter: 90 mm
Stud diameter: 30 mm
With eccentric collar: NO
Number of rows: 2
Outer ring profile: Spherical
Width: 100 mm

Specifications / All features

Brand: SKF
01212161
EAN: 7316571194745
Supplier number: SKF PWKR 90.2RS

Outer diameter: 90 mm
Stud diameter: 30 mm
With eccentric collar: NO
Number of rows: 2
Outer ring profile: Spherical
Width: 100 mm
Width, outer ring: 35
Basic static load rating: 85
Relubrication feature: Centre of each stud end and radial hole in stud shank
Lubricant: Grease
Feature for tightening: Hexagonal recess
Sealing type: Contact
Cage: Without
Tolerance class: Other
Material, bearing: Bearing steel
Functional outside diameter: 90
Rolling elements: Cylindrical rollers
Radial internal clearance: Between C2 and CN
Limiting speed: 2000
Sealing: Seal on both sides
Number of flanges, outer ring: 2
Basic dynamic load rating: 62.7
Coating: Without
Length: 100
Stud alignment: Centric
