SKF

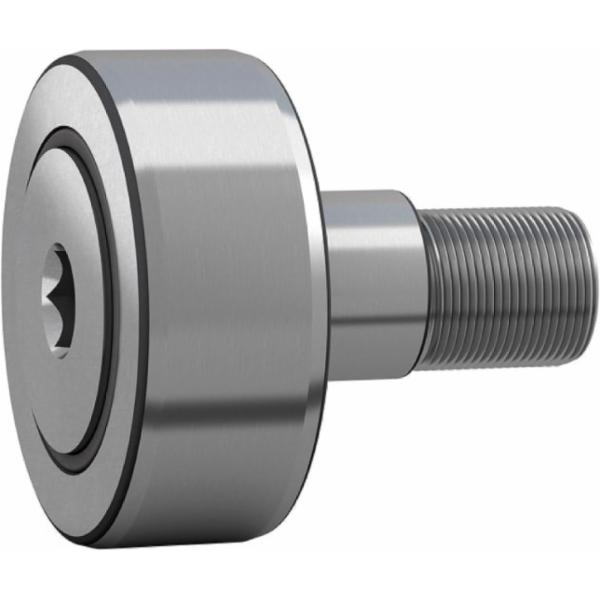

SKF PWKRE 90.2RS cam roller with eccentric collar, integrated seal and relubrication 90 mm

This article is not available

Key features according to our expert
  • Outer diameter: 90 mm
  • Stud diameter: 35 mm
  • With eccentric collar: Yes
  • Number of rows: 2
  • Outer ring profile: Spherical
  • Width: 100 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571194820
  • Supplier number: SKF PWKRE 90.2RS
Outer diameter
90 mm
Stud diameter
35 mm
With eccentric collar
Yes
Number of rows
2
Outer ring profile
Spherical
Width
100 mm
Width, outer ring
35 mm
Basic static load rating
85 kN
Relubrication feature
Centre of each stud end
Lubricant
Grease
Feature for tightening
Hexagonal recess
Sealing type
Contact
Cage
Without
Tolerance class
Other
Material, bearing
Bearing steel
Functional outside diameter
90 mm
Rolling elements
Cylindrical rollers
Radial internal clearance
Between C2 and CN
Sealing
Seal on both sides
Number of flanges, outer ring
2
Limiting speed
2,000 r/min
Basic dynamic load rating
62.7 kN
Coating
Without
Length
100 mm
Stud alignment
Centric stud with eccentric collar
