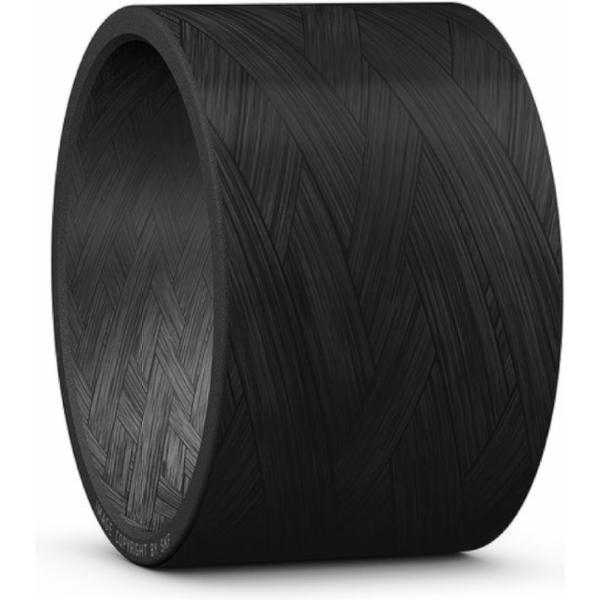

SKF PWM 11012580 straight wound plain bearing sleeve 110 x 125 x 80 mm

Supplier number: SKF PWM 11012580 | EAN 7316571166179
This product has been discontinued.



Product information

Key features according to our expert

  • Inner diameter: 110 mm
  • Width: 80 mm
  • With collar: No
  • Material (plain bearing bush): Glass fibre and PTFE
  • Outer diameter: 125 mm

Product description:

  • The basis of this type of sliding bushing, are braided fibres, enriched with "Matrix" (a specially developed resin) and this combined with the excellent strength property of glass fibre and of PTFE, the high strength of thermoplastic PES fibres
  • SKF wound bushings are suitable for applications where there are heavy loads and vibrations and where maintenance-free use is preferred
  • Applications include:
    • Construction machinery
    • Agricultural and forestry machinery
    • Lifting and conveyor equipment
    • Offshore installations

All Features

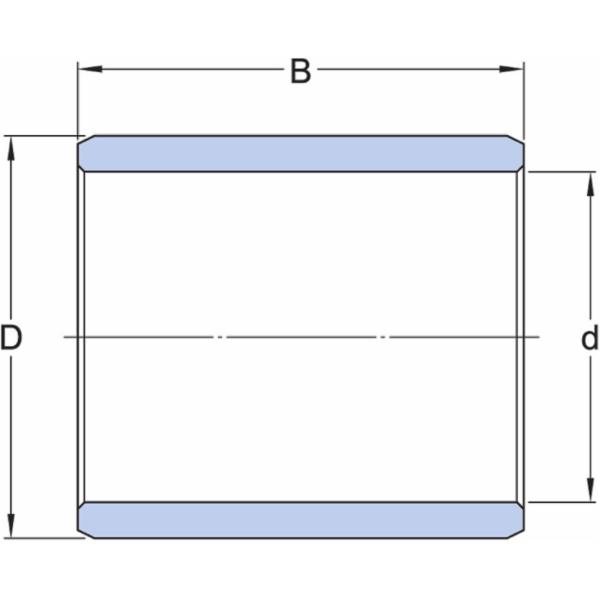

Inner diameter
110 mm
Width
80 mm
With collar
No
Material (plain bearing bush)
Glass fibre and PTFE
Outer diameter
125 mm
Material
Filament wound
Relubrication feature
Without
Basic static load rating
1,730 kN
Bore diameter
110 mm
Basic dynamic load rating
1,220 kN
Outer diameter
125 mm
Design
Straight
  • Brand SKF
  • EAN 7316571166179
  • Supplier number SKF PWM 11012580
