SKF

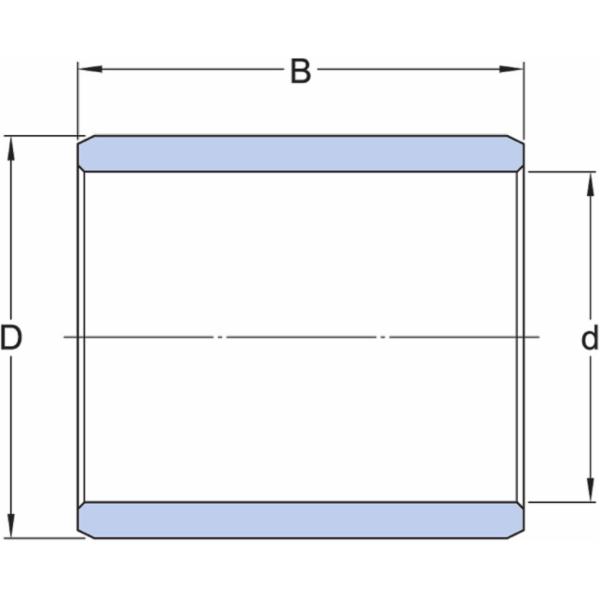

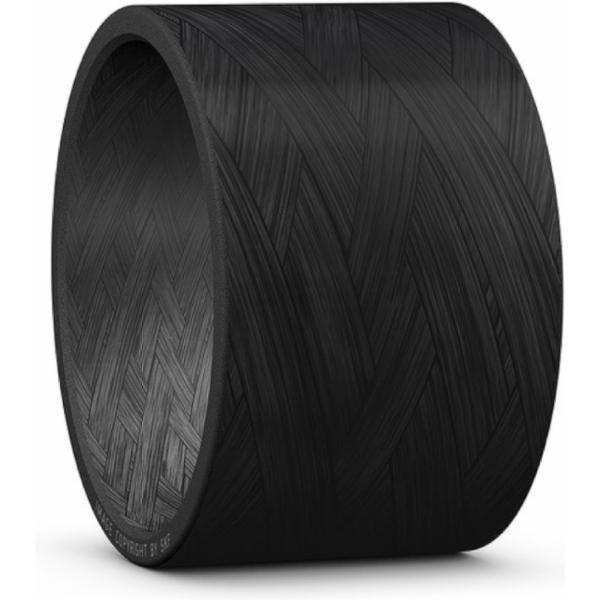

SKF PWM 120135120 straight wrapped sleeve bearing 120 x 135 x 120 mm

This article is not available

Product description:

  • The basis of this type of sliding bushing, are braided fibres, enriched with "Matrix" (a specially developed resin) and this combined with the excellent strength property of glass fibre and of PTFE, the high strength of thermoplastic PES fibres
  • SKF wound bushings are suitable for applications where there are heavy loads and vibrations and where maintenance-free use is preferred
  • Applications include:
    • Construction machinery
    • Agricultural and forestry machinery
    • Lifting and conveyor equipment
    • Offshore installations
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 120 mm
  • With collar: No
  • Material (plain bearing bush): Glass fibre and PTFE
  • Outer diameter: 135 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570331523
  • Supplier number: SKF PWM 120135120
Inner diameter
120 mm
Width
120 mm
With collar
No
Material (plain bearing bush)
Glass fibre and PTFE
Outer diameter
135 mm
Material
Filament wound
Relubrication feature
Without
Basic static load rating
2,850 kN
Bore diameter
120 mm
Basic dynamic load rating
2,000 kN
Outside diameter
135 mm
Design
Straight
