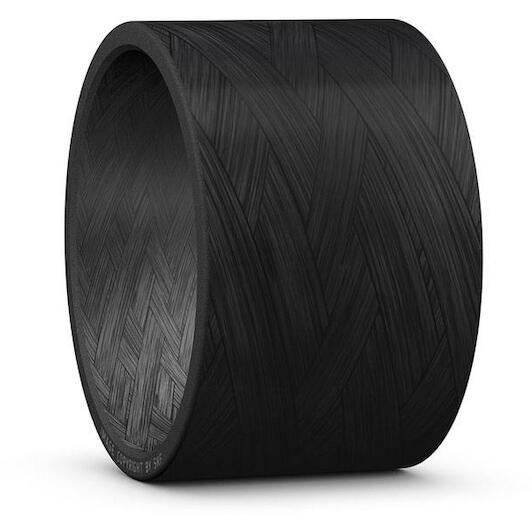

SKF PWM 556340 straight wound plain bearing bush 55 x 63 x 40 mm

SKF
Supplier number: SKF PWM 556340 | EAN 7316570314106
Recommended Retail Price €191.03
94.40 tax incl.
€78.02 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€94.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 55 mm
  • Width: 40 mm
  • With collar: No
  • Material (plain bearing bush): Glass fibre and PTFE
  • Outer diameter: 63 mm

Product description

SKF filament wound straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. The composite material is specially developed to accommodate heavy loads, impact loads and vibrations. The bushings are also less sensitive to misalignment and have excellent dry sliding characteristics.

  • Maintenance-free operation
  • Very good frictional properties
  • High load carrying capacity
  • Excellent corrosion resistance
  • Electrically insulating

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
55 mm
Width
40 mm
With collar
No
Material (plain bearing bush)
Glass fibre and PTFE
Outer diameter
63 mm
Material
Filament wound
Relubrication feature
Without
Basic static load rating
440
Bore diameter
55
Basic dynamic load rating
305
Outer diameter
63
Design
Straight
  • Brand SKF
  • EAN 7316570314106
  • Supplier number SKF PWM 556340
