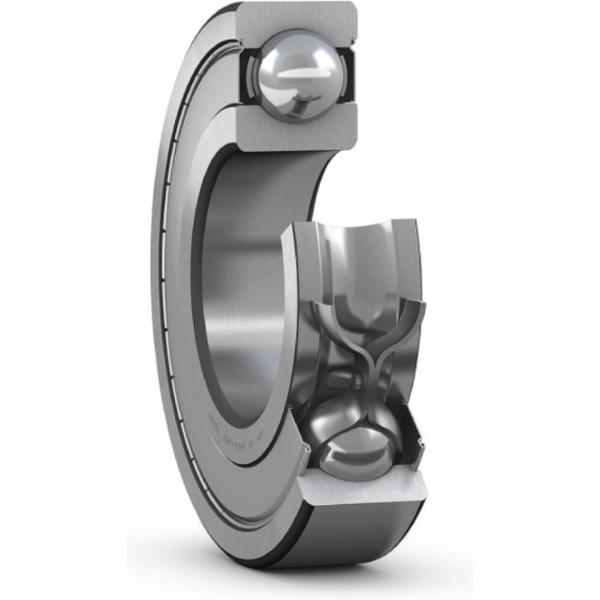

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 22,225 mm
Width: 14,288 mm
Number of rows: 1
Seal (bearing): Double-sided sealed
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 50,8 mm
Specifications / All features
Brand:
SKF
01010479
EAN:
7316577017673
Supplier number:
SKF RLS 7-2Z
Inner diameter
22,225 mm
Width
14,288 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Metal
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
50,8 mm
Relubrication feature
Without
Radial internal clearance
CN
Basic static load rating
7.65 kN
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
26,000 r/min
Lubricant
Grease
Sealing type
Non-contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Normal
Basic dynamic load rating
14 kN
Locating feature, bearing outer ring
None
Sealing
Shield on both sides
Limiting speed
13,000 r/min
Bore diameter
22.225 mm
Coating
Without
Outside diameter
50.8 mm
