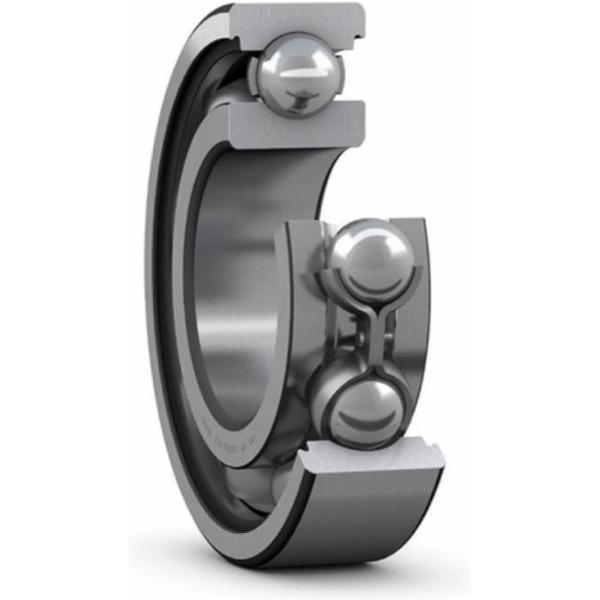

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 25,4 mm
Width: 15,875 mm
Number of rows: 1
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 57,15 mm
Specifications / All features
Brand:
SKF
01010480
EAN:
7316577017680
Supplier number:
SKF RLS 8
Inner diameter
25,4 mm
Width
15,875 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
57,15 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
9.65 kN
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
24,000 r/min
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
17,000 r/min
Bore diameter
25.4 mm
Basic dynamic load rating
17.8 kN
Outside diameter
57.15 mm
