skf_s7011acbp4a
SKF

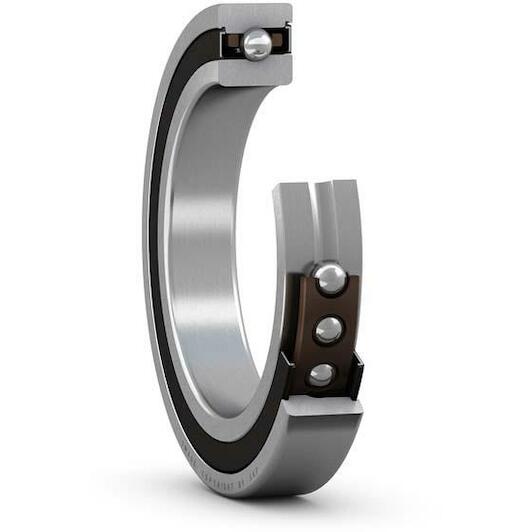

SKF S7011 ACB/P4A Single-row angular contact ball bearing high speed B-design with seals

Recommended Retail Price €1,400.73
693.40 tax incl.
€573.06 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These super-precision, high-speed, single row angular contact ball bearings, with 25° contact angle, with seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads.

  • Very high running accuracy
  • Accommodate high speeds
  • Reduced stresses on rolling contact surfaces
  • Non-contact seals
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 55 mm
  • Width: 18 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Rubber
  • Material (cage): Plastic
  • Outer diameter: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316576083570
  • Supplier number: SKF S7011 ACB/P4A
Inner diameter
55 mm
Width
18 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Rubber
Material (cage)
Plastic
Outer diameter
90 mm
Matched arrangement
No
Tolerance class
P4A
Contact type
Normal contact (two-point contact)
Basic static load rating
10.4
Cage
Non-metallic
Lubricant
Grease
Design
High-speed B
Sealing type
Non-contact
Sealing
Seal on both sides
Material, bearing
Bearing steel
Attainable speed for grease lubrication
19000
Ring type
One-piece inner and outer rings
Contact angle
25
Matched condition (axial clearance/ preload)
Not applicable
Bore diameter
55
Basic dynamic load rating
13.3
Coating
Without
Outside diameter
90
Universal matching bearing
No
