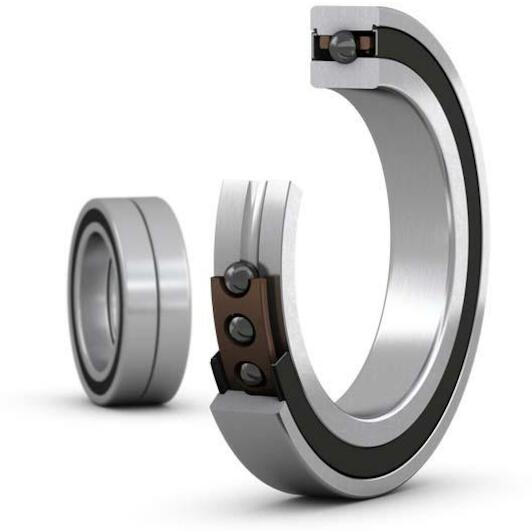

SKF S7014 ACB/HCP4ADGA Single-row angular contact ball bearing set high speed B-design with seals, matched 70 mm 2-piece

Supplier number: SKF S7014 ACB/HCP4ADGA | EAN 07316574565580

Recommended Retail Price €4,834.10

2,393.20 tax incl.

€1,977.85 excl. VAT (incl. all environmental contributions)

On order: delivered from 22/10/2026

Ordered before 20:00 - delivered as of 22/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Product information

€2,393.20

tax incl.

Key features according to our expert

Inner diameter: 70 mm
Width: 40 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 110 mm

Product description

These matched sets of two super-precision, high-speed B design, single row angular contact ball bearings with seals are available in a variety of arrangements. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads.

Very high running accuracy
Accommodate high speeds
Reduced stresses on rolling contact surfaces
Non-contact seals
Integral sealing prolongs bearing service life

All Features

Inner diameter: 70 mm
Width: 40 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 110 mm
Matched arrangement: Universal matching
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 31
Cage: Non-metallic
Lubricant: Grease
Design: High-speed B
Sealing type: Non-contact
Ring type: One-piece inner and outer rings
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Number of bearings in matched set: 2
Sealing: Seal on both sides
Contact angle: 25
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 70
Basic dynamic load rating: 29.6
Coating: Without
Outer diameter: 110
Note: Refer to catalogue data or contact SKF for the attainable speeds
