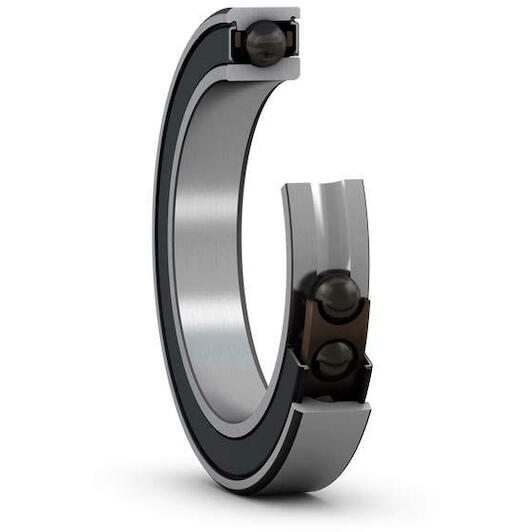

SKF S71909 CEGA/HCP4A Single-row angular contact ball bearing high speed E-design, universal pairing with seals

Recommended Retail Price €1,188.10

588.20 tax incl.

€486.12 excl. VAT (incl. all environmental contributions)

SKF S71909 CEGA/HCP4A Single-row angular contact ball bearing high speed E-design, universal pairing with seals

€588.20 Recommended Retail Price €1,188.10

On order: delivered from 23/05/2026

each

Ordered before 20:00 - delivered as of 23/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

These super-precision, high-speed, E design, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.

Very high running accuracy
Accomodate very high speeds
Universally matchable
Non-contact seals
Integral sealing prolongs bearing service life

Key features according to our expert

Inner diameter: 45 mm
Width: 12 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 68 mm

Specifications / All features

Brand: SKF
08126292
EAN: 07316576004063
Supplier number: SKF S71909 CEGA/HCP4A

Inner diameter: 45 mm
Width: 12 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 68 mm
Matched arrangement: No
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 6.8
Cage: Non-metallic
Lubricant: Grease
Design: High-speed E
Sealing type: Non-contact
Sealing: Seal on both sides
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 15
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 45
Basic dynamic load rating: 10.4
Coating: Without
Outside diameter: 68
Note: Refer to catalogue data or contact SKF for the attainable speeds
