SKF S71915 ACEGA/P4A Single-row angular contact ball bearing high speed E-design, universal pairing with seals 75 mm

Recommended Retail Price €1,691.06

837.20 tax incl.

€691.90 excl. VAT (incl. all environmental contributions)

SKF S71915 ACEGA/P4A Single-row angular contact ball bearing high speed E-design, universal pairing with seals 75 mm

€837.20 Recommended Retail Price €1,691.06

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

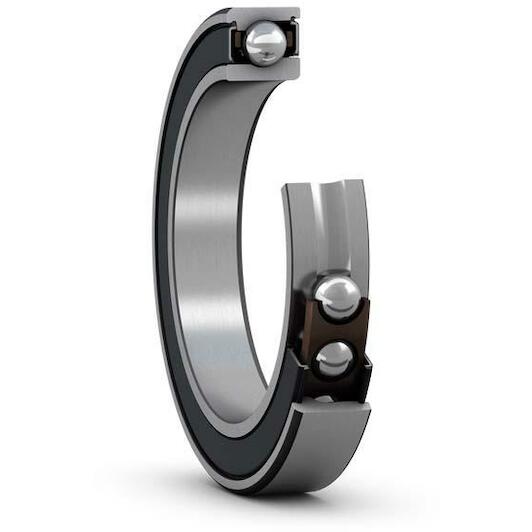

These super-precision, high-speed, E design, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.

Very high running accuracy
Accomodate very high speeds
Universally matchable
Non-contact seals
Integral sealing prolongs bearing service life

Key features according to our expert

Inner diameter: 75 mm
Width: 16 mm
Number of rows: 1
Seal (bearing): Double-sided sealed
Outer diameter: 105 mm

Specifications / All features

Brand: SKF
08106164
EAN: 7316576008399
Supplier number: SKF S71915 ACEGA/P4A

Inner diameter: 75 mm
Width: 16 mm
Number of rows: 1
Seal (bearing): Double-sided sealed
Outer diameter: 105 mm
Matched arrangement: No
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 16
Sealing type: Non-contact
Lubricant: Grease
Design: High-speed E
Sealing: Seal on both sides
Cage: Non-metallic
Material, bearing: Bearing steel
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Bore diameter: 75
Contact angle: 25
Matched condition (axial clearance/ preload): Measuring load, class A
Basic dynamic load rating: 21.2
Coating: Without
Outside diameter: 105
Note: Refer to catalogue data or contact SKF for the attainable speeds
