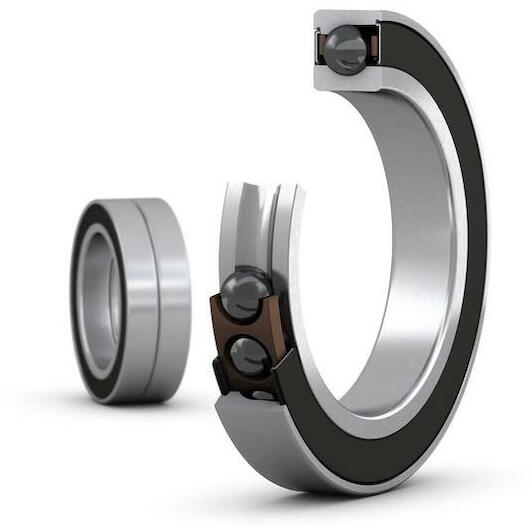

SKF S71915 CD/HCP4ADGA Single-row angular contact ball bearing set D-design high load capacity pairable 2-piece with seals

Supplier number: SKF S71915 CD/HCP4ADGA | EAN 07316576800160

Recommended Retail Price €4,253.62

2,105.80 tax incl.

€1,740.33 excl. VAT (incl. all environmental contributions)

On order: delivered from 23/10/2026

Ordered before 20:00 - delivered as of 23/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Product information

€2,105.80

tax incl.

Key features according to our expert

Inner diameter: 75 mm
Width: 32 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 105 mm

Product description

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings with seals are available in a variety of arrangements. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.

Very high running accuracy
Very high load carrying capacity
Non-contact seals
Integral sealing prolongs bearing service life

All Features

Inner diameter: 75 mm
Width: 32 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 105 mm
Matched arrangement: Universal matching
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 75
Cage: Non-metallic
Lubricant: Grease
Design: High-capacity D
Sealing type: Non-contact
Ring type: One-piece inner and outer rings
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Number of bearings in matched set: 2
Sealing: Seal on both sides
Contact angle: 15
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 75
Basic dynamic load rating: 58.5
Coating: Without
Outer diameter: 105
Note: Refer to catalogue data or contact SKF for the attainable speeds
