SKF S71918 ACE/HCP4ADGA Single-row angular contact ball bearing set high speed E-design, matched 90 mm 2-piece with seals

Supplier number: SKF S71918 ACE/HCP4ADGA | EAN 07316581869862

Recommended Retail Price €6,752.88

3,343.20 tax incl.

€2,762.98 excl. VAT (incl. all environmental contributions)

On order: delivered from 21/10/2026

Ordered before 20:00 - delivered as of 21/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Product information

€3,343.20

tax incl.

Key features according to our expert

Inner diameter: 90 mm
Width: 36 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 125 mm

Product description

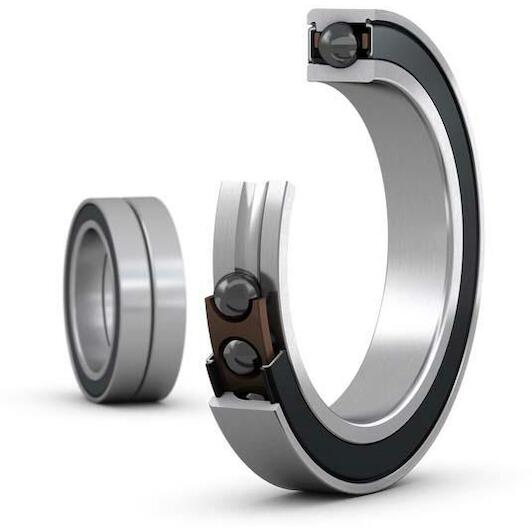

These matched sets of two super-precision, high-speed, E design, single row angular contact ball bearings with seals are available in a variety of arrangements. Compared to the equivalent SKF B design high-speed bearings, these have a slightly higher speed capability and can accommodate heavier loads.

Very high running accuracy
Accommodate very high speeds
Non-contact seals
Integral sealing prolongs bearing service life

All Features

Inner diameter: 90 mm
Width: 36 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 125 mm
Matched arrangement: Universal matching
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 45.5
Cage: Non-metallic
Lubricant: Grease
Design: High-speed E
Sealing type: Non-contact
Ring type: One-piece inner and outer rings
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Number of bearings in matched set: 2
Sealing: Seal on both sides
Contact angle: 25
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 90
Basic dynamic load rating: 46.8
Coating: Without
Outer diameter: 125
Note: Refer to catalogue data or contact SKF for the attainable speeds
