SKF

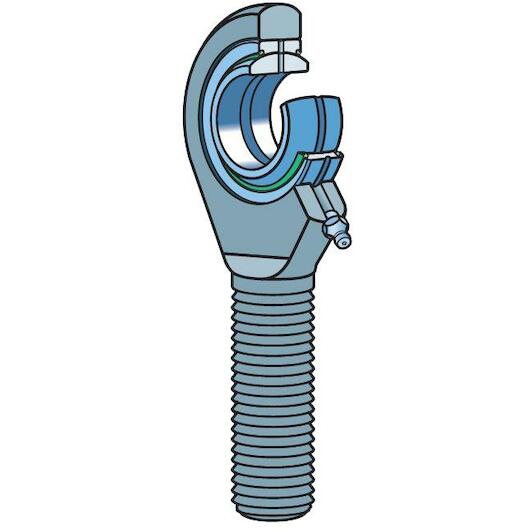

SKF SAA 50 ES-2RS Rod head with male thread 50 mm, M 45x3

Recommended Retail Price €1,007.54
498.80 tax incl.
€412.23 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The male thread is available with a left- (prefix SAL) or a right-hand thread. Some sizes have different fitting dimensions (SA(L)A series).

  • Long service life
  • Minimal maintenance
  • Easy to relubricate
  • Suitable for heavy static, alternating or impact loads
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 50 mm
  • Connection type: Outer thread
  • Thread type: Metric fine
  • Seal (bearing): Double-sided sealed
  • Maintenance free: Nein
  • Connection size: M45 x 3
Specifications / All features
  • Brand: SKF
  • EAN: 7316577300386
  • Supplier number: SKF SAA 50 ES-2RS
Inner diameter
50 mm
Connection type
Outer thread
Thread type
Metric fine
Seal (bearing)
Double-sided sealed
Maintenance free
Nein
Connection size
M45 x 3

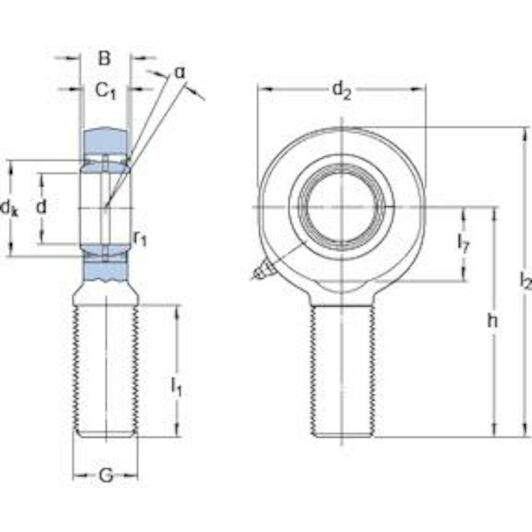

Bore diameter, bearing inner ring
50
Attachment feature, rod end shank
Right-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/steel, standard
Housing length, total
244
Maintenance
Relubrication required
Thread designation
M 45x3
Material, outer ring
Bearing steel
Sealing type
Double-lip
Outside diameter, housing eye
114
Width, bearing inner ring
35
Basic static load rating
245
Material, inner ring
Bearing steel
Sealing
Seal on both sides
Width, housing eye
31
Basic dynamic load rating
156
Centre height, housing (from end of shank)
185
