SKF

SKF SAKAC 22 M Rod head with male thread 22 mm, M 22x1.5

Recommended Retail Price €267.72
132.40 tax incl.
€109.42 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

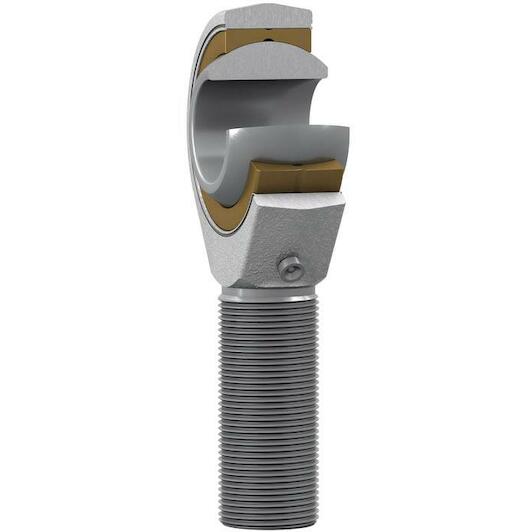

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The male thread is available with a left- (prefix SAL) or right-hand thread.

  • Suitable where lubricant starvation might occur
  • Simple and ready-to-mount
  • Easy to relubricate (sizes >= 6)
Key features according to our expert
  • Inner diameter: 22 mm
  • Connection type: Outer thread
  • Thread type: Metric
  • Seal (bearing): Without seal
  • Maintenance free: Nein
  • Connection size: M22 x 1,5
Specifications / All features
  • Brand: SKF
  • EAN: 7316570994179
  • Supplier number: SKF SAKAC 22 M
Inner diameter
22 mm
Connection type
Outer thread
Thread type
Metric
Seal (bearing)
Without seal
Maintenance free
Nein
Connection size
M22 x 1,5
Basic static load rating
39
Attachment feature, rod end shank
Right-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/bronze
Housing length, total
114
Maintenance
Relubrication required
Thread designation
M 22x1.5
Outside diameter, housing eye
55
Bore diameter, bearing inner ring
22
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
28
Width, housing eye
21
Basic dynamic load rating
38
Centre height, housing (from end of shank)
84
