SKF

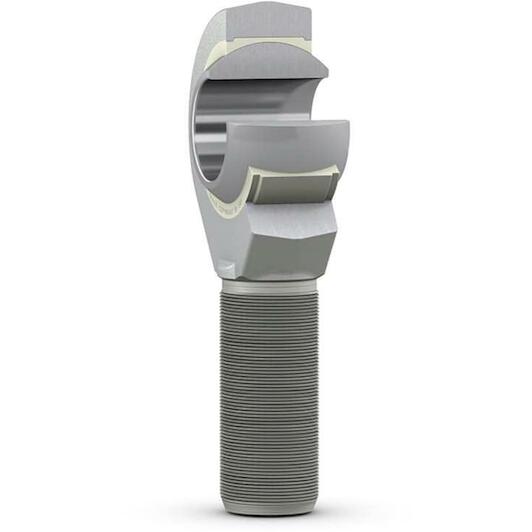

SKF SAKB 22 F Rod head with male thread 22 mm, M 22x1.5

Recommended Retail Price €470.88
232.95 tax incl.
€192.52 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.

  • Long service life
  • Maintenance-free
  • Relatively insensitive to contaminants
  • Low coefficient of friction
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 22 mm
  • Connection type: Outer thread
  • Thread type: Metric fine
  • Seal (bearing): Without seal
  • Maintenance free: Yes
  • Connection size: M22 x 1,5

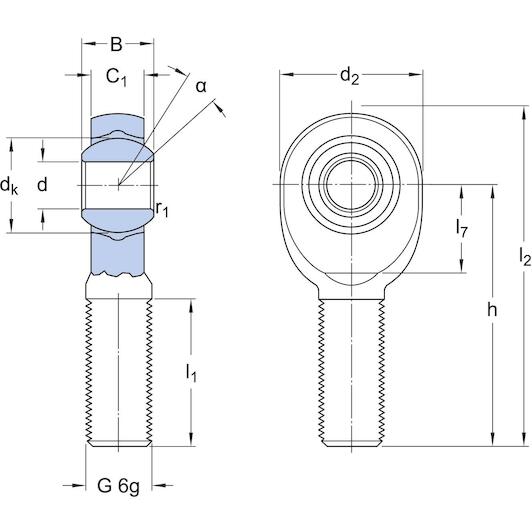

Specifications / All features
  • Brand: SKF
  • EAN: 7316577003775
  • Supplier number: SKF SAKB 22 F
Inner diameter
22 mm
Connection type
Outer thread
Thread type
Metric fine
Seal (bearing)
Without seal
Maintenance free
Yes
Connection size
M22 x 1,5
Basic static load rating
58.5
Attachment feature, rod end shank
Right-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE FRP
Housing length, total
114
Maintenance
Maintenance-free
Thread designation
M 22x1.5
Outside diameter, housing eye
55
Bore diameter, bearing inner ring
22
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
28
Width, housing eye
21
Basic dynamic load rating
38
Centre height, housing (from end of shank)
84
