SKF SALKAC 5 M Rod head with male thread, left-hand thread 5 mm, M 5

SKF
Supplier number: SKF SALKAC 5 M | EAN 7316577042996
Recommended Retail Price €136.38
67.40 tax incl.
€55.70 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€67.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 5 mm
  • Connection type: External thread
  • Thread type: Metric - Left
  • Sealing (bearing): Without seals
  • Maintenance free: Nein
  • Connection size: M5

Product description

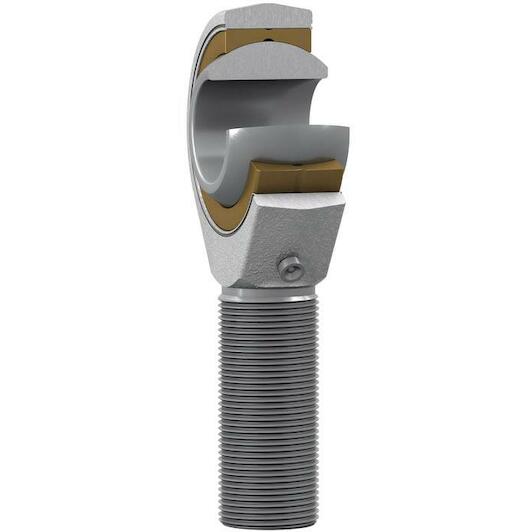

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The male thread is available with a left- (prefix SAL) or right-hand thread.

  • Suitable where lubricant starvation might occur
  • Simple and ready-to-mount
  • Easy to relubricate (sizes >= 6)

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
5 mm
Connection type
External thread
Thread type
Metric - Left
Sealing (bearing)
Without seals
Maintenance free
Nein
Connection size
M5
Basic static load rating
4.8
Attachment feature, rod end shank
Left-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/bronze

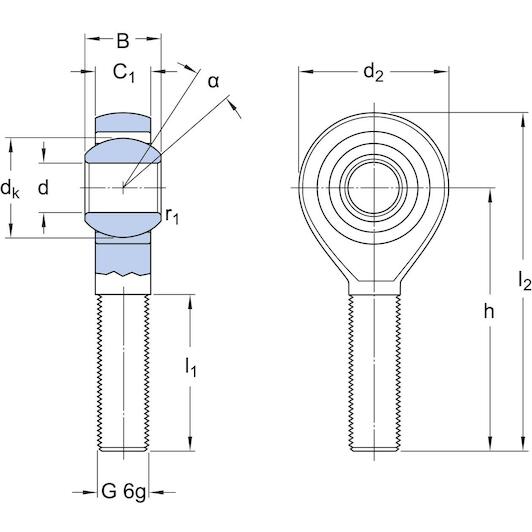

Housing length, total
44
Maintenance
Relubrication required
Thread designation
M 5
Outside diameter, housing eye
19
Bore diameter, bearing inner ring
5
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
8
Width, housing eye
7.5
Basic dynamic load rating
3.25
Centre height, housing (from end of shank)
33
  • Brand SKF
  • EAN 7316577042996
  • Supplier number SKF SALKAC 5 M
